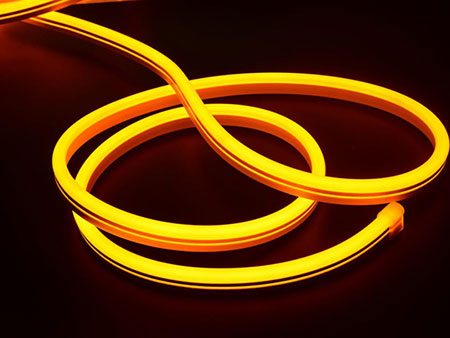

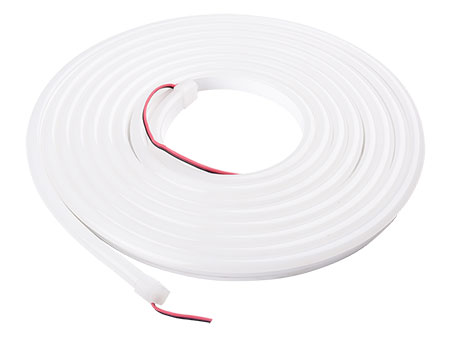

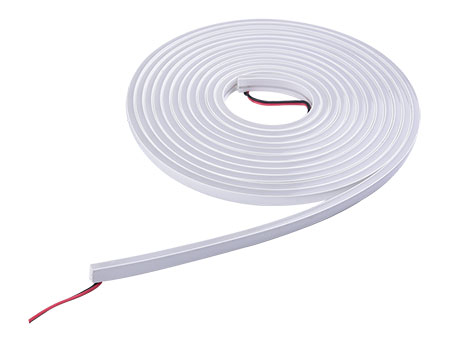

Neon Flex LED Lighting
Request a Quote
- Watts: 12W/M
- LED: 120x 2835 SMD
- Voltage: 24V
- Our neon flex LED lighting features anti-yellowing and heat resistant silicon glue with outstanding chemical and alkaline resistance. These characteristics make the lighting unit perfect for extreme outdoor conditions.
GJ0512-2805-120W-24（Dimension: 5000*5*12）
GJ0612-2808-120W-24（Dimension: 5000*6*12）
GJ0613-2808-120W-24（Dimension: 5000*6*13）
GJ0922-2810-120W-24（Dimension: 5000*9*22）
Features:
- Applying food grade silicone, the neon flex LED lighting is anti-yellowing with good weather resistance, making the light suitable for outdoor installation
- Excellent flexibility for custom shape options
- Uniform and soft luminance, no light spots
- Red/green/yellow/white/pure white/warm white/cool blue/rose red are available
- DC24V option, low input, safe and reliable
- SMD2835 thick bracket lamp beads are firm and durable
- High bright lamp beads, CRI80
- 3 year warranty, maximum can reach 5 years of quality assurance
- Double-sided 2OZ calendered copper circuit board with stable quality
- 5CM units and they can be cut in different lengths to meet different needs
Technical parameters:
| Model | Max daisy chain（LED Qty） | Color | Luminous flux（Output） | Color temperature(K) | Color rendering index R（CRI） | Nominal voltage | Dimension | Power(W/M) | Luminous flux（lm/M） |
| (CCT) | (V DC) | （length*width*height mm） | |||||||
| GJ0512-2805-120W-24 | 120-LED/M | red/green/blue/yellow/write/pure write/Warm White/ice blue/Rose red | 1600lm/M | 6000-7000K | ≥80% | 24 | 5000*5*12 | 12 | 1300-1500 |
| GJ0612-2808-120W-24 | 120-LED/M | red/green/blue/yellow/write/pure write/Warm White/ice blue/Rose red | 1600lm/M | 6000-7000K | ≥80% | 24 | 5000*6*12 | 12 | 1300-1500 |
| GJ0613-2808-120W-24 | 120-LED/M | red/green/blue/yellow/write/pure write/Warm White/ice blue/Rose red | 1600lm/M | 6000-7000K | ≥80% | 24 | 5000*6*13 | 12 | 1300-1500 |
| GJ0922-2810-120W-24 | 120-LED/M | red/green/blue/yellow/write/pure write/Warm White/ice blue/Rose red | 1600lm/M | 6000-7000K | ≥80% | 24 | 5000*9*22 | 12 | 1300-1500 |

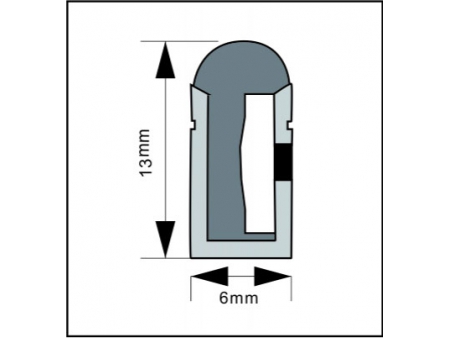

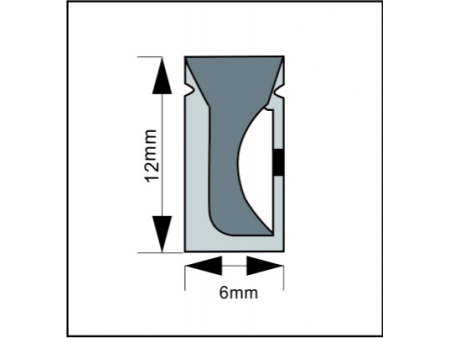

Dimension:
- GJ0612-2808-120W-24
- GJ0613-2808-120W-24

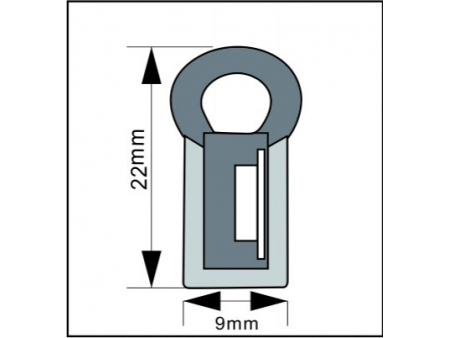

- GJ0922-2810-120W-24

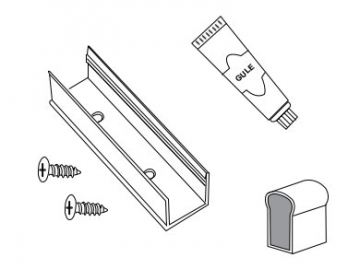

Installation accessories:
Fixing screws, fixing buckles, glue, plugs Installation instruction:
Installation method:

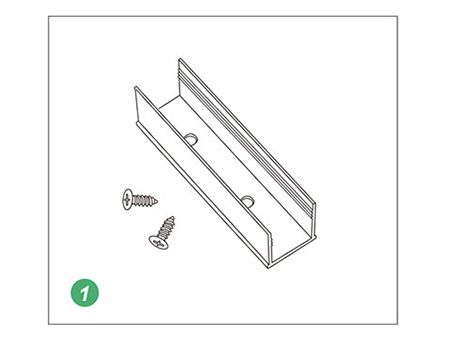

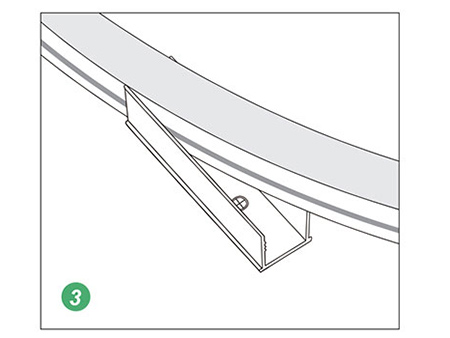

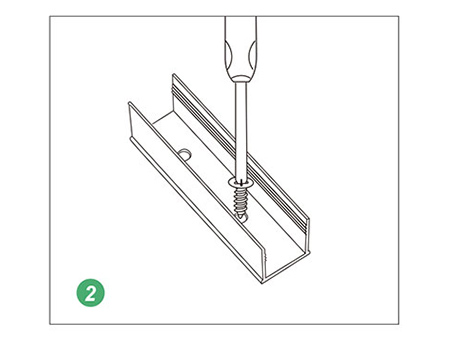

1. Prepare the screws and fixed clips2. Adjust the fixed clips to the appropriate place, and use a screwdriver to fix the screw 3. Put the light-emitting surface upwards, then insert the LED strip into the fixed clips4. Fix the LED strip completely into the fixed slip. The LED strip surface must be parallel to the top edge of the fixed clip
- Cut the appropriate spot
- Finish the cutting
- Coat the section with glue uniformly after cutting
- Insert the section into the plug according to the direction of the arrow
- Use hot air to dry the plug quickly or air dry to ensure a firm installatio
- Finished plug installation
Occlusion incision
Precaution: Please note that the strips are not bendable in all directions. Please follow the instructions.
- Face the light surface, fold the strip, the minimum bending diameter is 40mm (as the picture shows)
- Light surface upwards, the strip is bendable to right or left naturally, the minimum bending diameter is 50mm (as shown)
- Face to the side surface, (as shown). Do not bend downward
- Face to the side surface, (as shown). Do not bend upward or risk damaging the strip
LED strips are low voltage products, you must use the AC-DC switching power supply (transformer). Do not connect the LED strip directly to the AC110V or AC220V, otherwise, it will burn out the LED strips, which can be dangerous.
Please read the specifications thoroughly before installation by professional staff to ensure safety.
Installation Instructions:
- The main power cable uses 2x1.5mm2. If the LED Rigid Bar lines need to be lengthened, then the lamp power needs a wire above 0.75mm2 / 18 # specifications in order to avoid overloading the power cord leading to excessive heat. The power supply and power cord length straight between the lamp must not exceed 3 meters. If it does, line loss will increase.

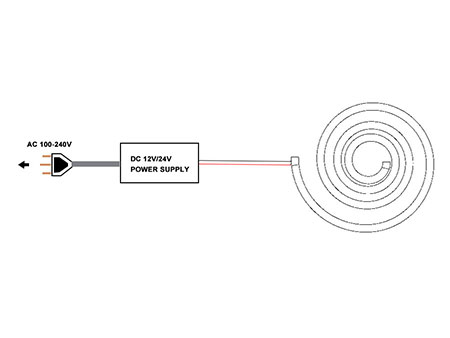

- Please use the connection diagram in the wiring scheme
- The screws into the lamp mounting should feature straight holes and lock in place
- When LED Rigid Bar trails have a bare wire conductor, first strip off about 10mm then screw into the connection head insulation protection.
- To ensure waterproofing and corrosion protection of the power line after screwing Terminals, we recommend an injection with one-component silicone (or neutral glass, plastic, or with waterproof grease), covering bare copper wire power cord for protection
- Do not touch live wire
- Recommend switching power supply with the relevant regulatory certification (short circuit protection, overvoltage protection, overcurrent protection).
Packaging diagram:
Packaging instructions：
- Carton package, box size：250*350mm
- Carton outer size：457*337*320mm
- Each box contains 50 bags, total 50PCS
- Net Weight（NW）6.5(1±10%)kg
- Gross Weight（GW）:8.7(1±10%)kg
- Note: The above package quantity and weight of packaging is only for illustration.

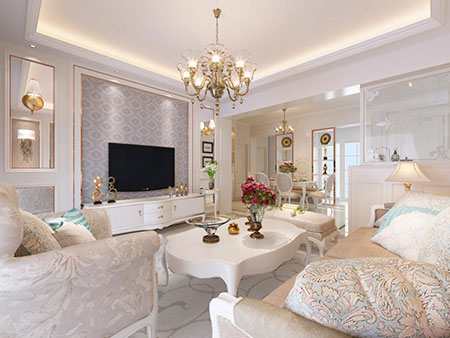

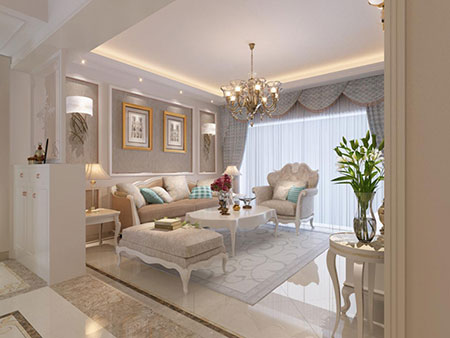

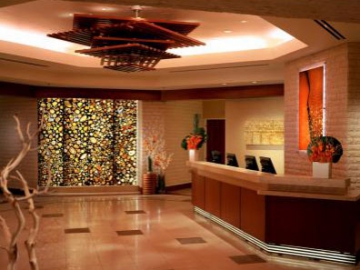

Examples of applications:
