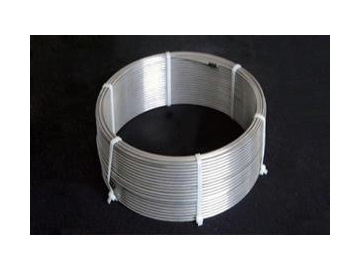

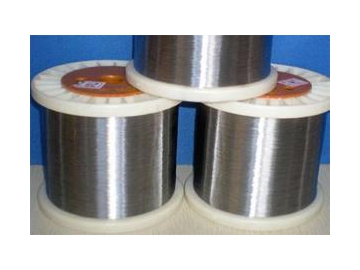

Push-Pull Cable
Request a Quote
Application
The Fasten push-pull cable is a control cable used for automotive components such as brakes and clutch assembly.
| Long Lay Push-Pull Cable | |||
| Construction | Diameter (mm) | Unit Weight Approx(kg/1000m) | Min. Breaking Strength (KN) |
| 1 9*7 | 3.5 | 57.37 | 9 |
| 1 7*7 | 3.5 | 57.81 | 9 |
| 1 10*7 | 3.6 | 59.49 | 12 |
| 1 15 17 | 3.2 | 51.28 | 9 |
| 1 15 16 | 3.3 | 57.18 | 10 |
| 1 15 13 | 3.6 | 66.21 | 11.5 |
| 1 16 15 | 4.1 | 84.17 | 15 |
| 1 12 16 | 4.5 | 102.66 | 17.5 |
| 1 16 18 | 5 | 127.69 | 23 |
| 1 14 16 | 5.5 | 153.15 | 26.5 |
| 1 15 18 | 6 | 183.43 | 30 |
| 1 14 17 | 6.4 | 210.81 | 35 |
| 1 12 | 1.6 | 13.49 | 2.5 |
| 1 14 | 1.8 | 17.42 | 3 |
| 1 16 | 2 | 21.84 | 4.5 |
| 1 15 | 2.3 | 28.96 | 5.5 |
| 1 14 | 3 | 47.45 | 9 |
| 1 12 | 3.2 | 53.95 | 10 |
| 1 14 | 3.4 | 133.5 | 10 |
| 1 17 | 3.5 | 67.75 | 12 |
| 1 19 | 3.5 | 65.02 | 12 |
| Stainless Steel Flat Wire Armored Cable | ||||
| Push-Pull Cable Core | ||||
| Outer Dia. (mm) | Flat Wire Size H×W(mm) | Core Structure | Core Dia. (mm) | Unit Weight Approx(kg/1000m) |
| 3.2 | 0.35×2.5 | 1 12 | 2.5 | 56 |
| 4 | 0.40×2.5 | 1 15 17 | 3.2 | 78 |
| 4.5 | 0.45×2.8 | 1 15 13 | 3.6 | 109 |
| 5.5 | 0.50×4.0 | 1 12 16 | 4.5 | 162 |
| Aircraft Cable Core | ||||
| Outer Dia. (mm) | Flat Wire Size H×W(mm) | Core Structure | Core Dia. (mm) | Unit Weight Approx(kg/1000m) |
| 3.2 | 0.35×2.5 | 1×19 | 2.5 | 53 |
| 3.6 | 0.40×2.5 | 1×19 | 2.8 | 69 |
| 4 | 0.35×2.5 | 1×19 | 3.3 | 77 |
| 4.3 | 0.40×2.5 | 1×19 | 3.5 | 86 |
| 4.6 | 0.40×2.8 | 1×19 | 3.8 | 112 |
| 5.5 | 0.80×4.0 | 1×19 | 4.5 | 161 |
