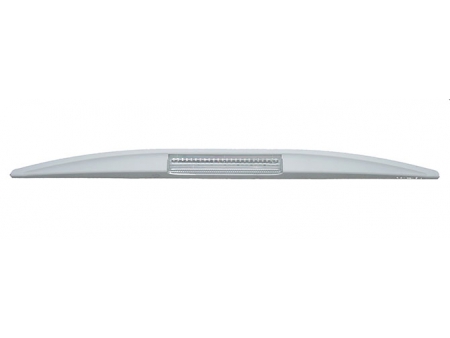

Awning Entrance Lamp/Vehicle Side Light
Description
A 40 degree downward illumination in the vehicle side light provides efficient lighting for the ground and door to the vehicles. The surface mount installation meets IP67 standard, and the precision die-cast aluminum base ensures an excellent heat dissipation and longer lamp life.
- ADL013
- ADL013-S
- ADL014
- SW-09
- SW-16
- ASW01
Specification:
Operating Voltage:10~33VDC
Operating Temperature:-40~65℃
Light Source: 9*3W high light efficiency LED;CRI＞80
Light Color:~3000K warm white, 4000~4500K natural white, 6000~6500K pure white
Luminous Flux:﹥1200lm

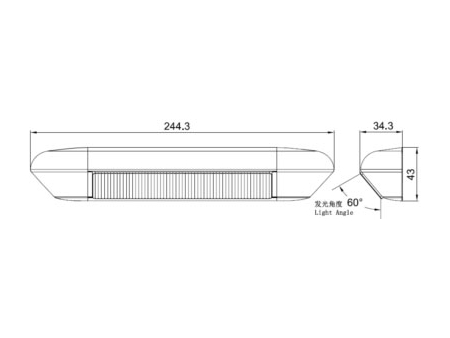

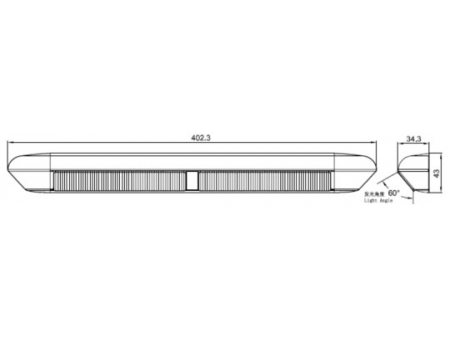

Light Emitting Angle:H80°/60°
Power: ~14W/18W,Operating Current:1.2A@12VDC; 0.65A@24VDC
PC lens with UV-resistant;

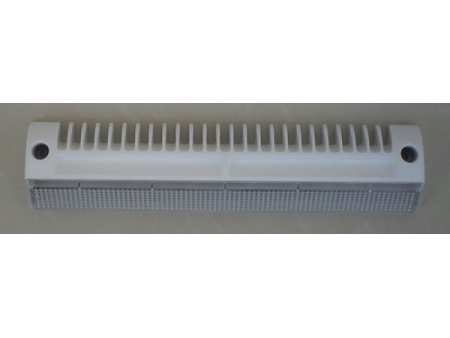

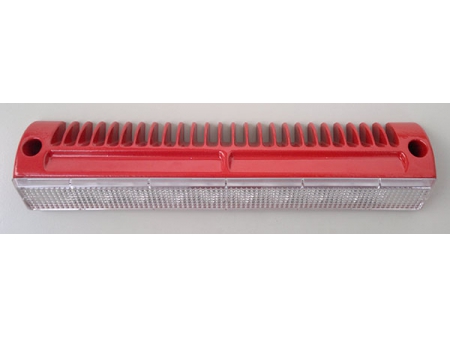

Aluminum die casting Base in white / black / red (optional) or other customized color;
IP67
| P/N | LED Qty | Power | Luminous Flux | Housing color | Remark |

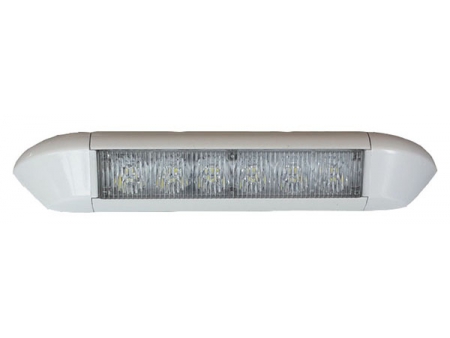

| | 6pcs | 9W | 800lm | white | P 9016 |
| | black | ||||

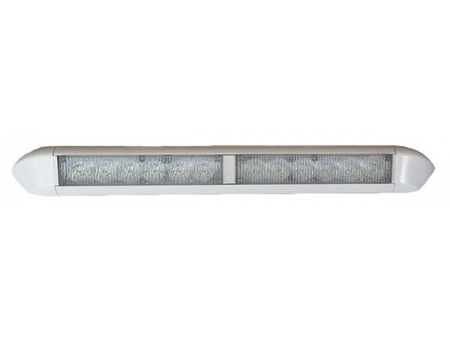

| | 12pcs | 18W | 1500lm | white | P 9016 |
| | black |
Applications:

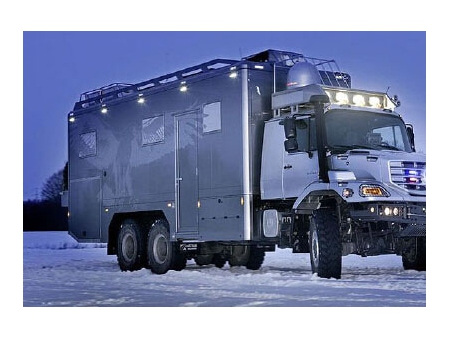

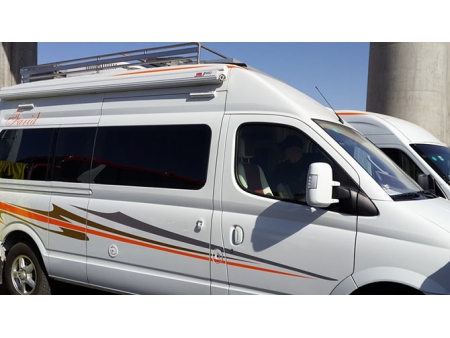

The awning entrance lamp is commonly used in shelters, cabins, motor homes, caravans, refrigerator cars, special vehicles in mines, and other specialized applications.
