Multifunctional Medical Tape Coating Machine Manufacturer

Multifunctional Medical Tape Coating Machine

Request a Quote

View All: http://coatingslitter.com/1-17-opp-film-laminating-machine.html

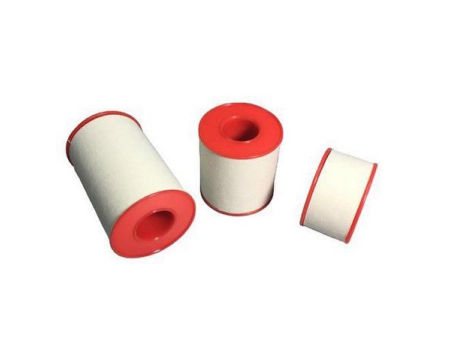

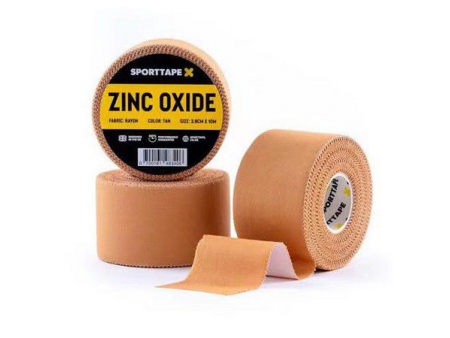

Our multifunctional medical tape coating machine is equipped with fiber-reinforced adhesive spraying system, able for the combination of PE film and non-woven fabric, providing good fineness and breathability of its products. Designed for manufacturing medical materials such as surgical tapes, muscle tapes, medical rubber plaster, etc., and is also able for producing athletic tapes, silk tapes, etc.

Specifications

Model	JYT-B
Coating Width	400-2000mm
Coating Weight	10-200g/m²
Coating Speed	50m/min
Unwind Diameter	1000mm
Rewind Diameter	700mm
Web Guide System	2 sets
Length	5000mm
Height	1400mm
Power	38-60kW
Power Supply	380v±15% 50Hz

Parameters can be adjusted according to specific customer requirements.

Features

Coating speed and adhesive supply speed can be manually adjusted or automatically synchronized.
Intelligent PID temperature control system, ensuring an error within 1℃.
All active rollers and passive guide wheels have been corrected by high-precision dynamic balancing equipment. With well-arranged assembling process, the machine runs smoothly with low noise, preventing composite materials from wrinkling and thus ensuring excellent production quality.
High-precision alloy applicator head and gear metering pump ensure high coating quality.
With the fiber-reinforced adhesive spraying system, combining of PE film and non-woven fabric can be performed, which allows for the production of specialty filter materials, shoe materials, medical materials and other specialty materials. Fiber-reinforced adhesive spray features relatively low amount, good uniformity and fineness, which makes the coating breathable.
