Medical Tape Slitting Machine, JY-215
Request a Quote

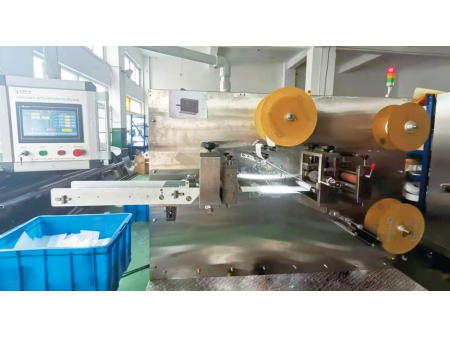

Surgical tape slitting and rewinding machine
This slitting machine is specially developed for healthcare and medical product manufacturers, with high-precision slitting for medical-grade adhesives. It effectively slits a broad range of medical adhesives including those with straight or sawtooth edges.
Specifications
| Machine Width | 1.1m |
| Max. Unwind Diameter | 800mm |
| Min. Cutting Diameter | 12mm |
| Max. Rewind Diameter | (1"shaft) 4 shafts exchange: 75mm |
| (3"shaft) 4 shafts exchange: 150mm | |
| (3"shaft) 2 shafts exchange: 320mm | |
| Machine Speed | 0-130m/min |
| Cutter Blade | Razor 0.2×22×60mm/Air blade: Taiwan brand |
| Main Motor | 5kW(380V-50Hz) |
| Air Source | 6 bar |
| Dimensions (1.15m) | 2450×1250×1450mm |
| Weight | ±1100kg |
