LED tube light automated assembly equipment can complete processes of dispensing, assembling, aging testing automatically, which can help you improve production efficiency, product qualification rate and reduce labor costs in T8&T5 LED tube light assembly. Take T8 LED tube light as an example, three workers are required to complete the manual assembly, with production efficiency about 500-600 pcs/h; while the same process operated by the automatic assembly equipment only requires one person, with production efficiency about 1500pcs/h.

  • Dispensing for LED tube light
  • Wire cutting and soldering
  • Correction of light tube parallelism

In the automatic dispensing part, the light strips are picked and placed with suction assembly automatically, and then glued and fitted simultaneously with several sets of dispensing valves. The assembly part is highly integrated, which can realize automatic soldering of driver board, automatic soldering of the second lamp holder, tube length fixing, parallelism rectifying, wire cutting, lamp cap punching, lighting testing, etc. according to your demands.

The automated assembly equipment is specially designed for the production of T8 and T5 LED tubes of 0.6m, 0.9m and 1.2m in length. It can also be customized to process LED tubes of 1.5m.

Production process

A. Automatic Fluid dispensing system

LED FPC dividing->LED strip picking->LED strip dispensing->tube pressure maintaining->tube feeding->tube flipping->tube handling->finished products

B. Automatic assembly production line

Automatic material unloading to the dolly with manipulator->automatic feeding->tube parallelism rectifying->wire cutting and soldering->automatic soldering->plug gluing->plug length fixed->lighting testing->feeding to aging line->tube aging testing->discharging from aging line->laser marking.

Characteristics
  • With the function of automatic LED FPC dividing, 10, 11 and 12 pieces of LED FPC can be divided from one whole LED strip board with this machine according to your needs.
  • The LED strips are picked and placed with suction assembly automatically.
  • Automatic tube feeding via slope conveying.

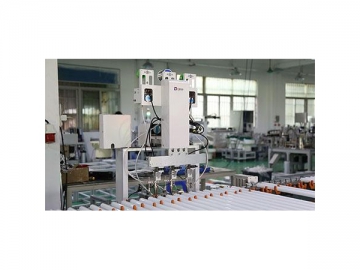

  • Several sets of dispensing valves can dispense and fit LED strips simultaneously.
  • Automatic material unloading with sucker manipulator.
  • Automatic soldering of driver board in T8 LED tube.
  • Automatic wire soldering of lamp holder part.
  • Lamp lighting and power testing available

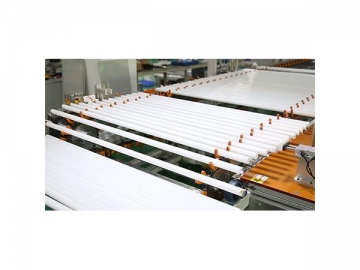

Climbing type automatic tube feeding
Technical parameters

1. Fluid dispensing system

Overall dimension L3350*W3400*H1980mm
Rated voltage AC380V,50-60HZ
Rated power 10Kw
Design capacity 1600~1800pcs/h
Air pressure 0.5-0.7MPa

2. Assembly production line

Overall dimension L11300*W1900*H1600mm
L11300*W1800*H1700mm
Working voltage AC220V 50HZ
Air pressure 0.5-0.7MPa
Design capacity 1200PCS/h
Actual capacity 1000PCS/h
Control system PLC+human interface
