I Series LED Track Lighting Head, Track Luminaire with Straight Tube and Extra Power Box
Request a Quote
Specification
- Power 30W/35W/40W/50W
- LED Chip Citizen/CREE COB
- LED Driver Tridonic, Philips, OSRAM, Lifud, BOKE, Others are available
- Dimming options Non-dimming, DALI, TRIAC, 0/1-10V, DMX, RF, ZigBee
- PF >0.9
- Body Material ADC12 die-casting aluminum alloy
- Adjustable 350° rotation horizontally and 90° pivot
- Housing color Black/white
- Phase 1 /2 /3 phase
- Lifespan 50000 hours
- Warranty 3-5 Years

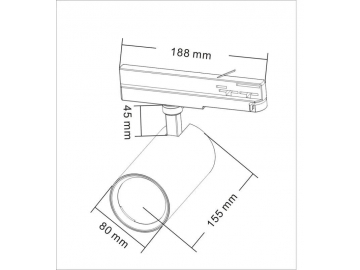

Dimension
Product Models
| Model No. | Power | Dimension | LED Chip | CCT | CRI | Luminous Efficacy | Beam Angle | Input Voltage | Track adapter |
| BH-TL-30W-I-1 | 30W | Φ80*155mm | Citizen/ CREE COB | 2700K 3000K 3500K 4000K 5000K | 80 90 97 | 100-110lm/W @CRI80 | 15° 24° 38° | AC220-240V/AC100-240V 50/60Hz | 1 phase 2 phase 3 phase |
| BH-TL-30W-I | 30W | Φ90*200mm | 15° 24° 38° 60° | ||||||
| BH-TL-35W-I | 35W | ||||||||
| BH-TL-40W-I | 40W | ||||||||
| BH-TL-50W-I | 50W |
