SN 38F MIG/MAG Welding Gun
Request a Quote
Technical Data
Cooling Method: Air-Cooled
Rating: C02: 350A
Rating: Mixed Gas: 320A
Duty Cycle: 60%
Wire Size: 1.0-1.6
Model
| Description | Length | Part Number |
| SN 38F 4CE Welding Gun c/w Euro Fitting | 3M | SN 38F-3E |
| 4M | SN 38F-4E | |
| 5M | SN 38F-5E |

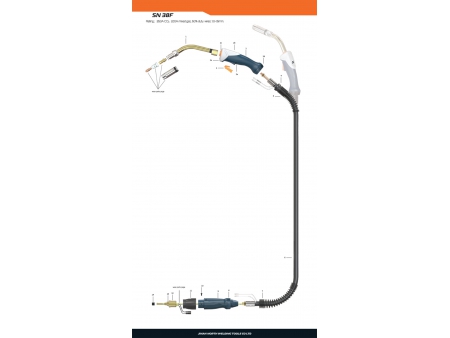

Components
| No. | Part Number | Description |
| 1 | 300638 | 4CE-38 Swan Neck |
| 2 | NH010201 | Torch Handle DIY R |
| NH010202 | Torch Handle DIY L | |
| 2a | NH010203 | Front Cover |
| 2b | NH010205 | PCB Holder |
| 2c | NH010207 | Adaptor 18mm |
| 2d | NH010208 | Locking Nut |
| 2e | Q260312B | ST Screw 3x12 |
| 3 | EJ0005 | Trigger PMS1585C |
| 4 | NH010305 | Ball Joint |
| 5 | 142SBJ02 | Front Cable Support Spring |
| 6 | SEL4030* | Cable Assembly 3m |
| SEL4040 | Cable Assembly 4m | |
| SEL4050 | Cable Assembly 5m | |
| 7 | 8M9500 | Back Cable Support Spring |
| 8 | NH020204 | Back Handle Nut |
| 9 | NH0202 | Back Handle Assembly |
| 10 | Q210406B | Screw M4x6 |
| 11 | NH020203 | Gun Plug Nut |
| 12 | EU1001A | Euro Gun Plug |
| 13 | Q504010 | O-ring 4x1 |
| 14 | EU1011A* | Plastic Nut M10x1,Black |
* IMPORTANT: Must indicate F- 4CE swan neck / S- Klasik swan neck welding gun to classify standard configuration.
