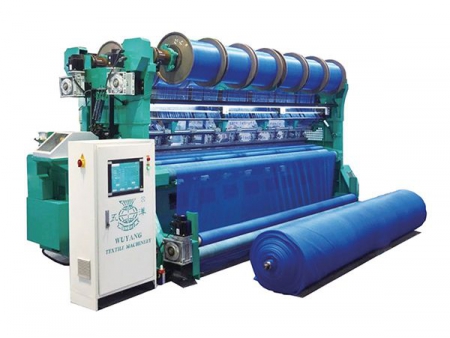

GE291 Raschel Machine
Raschel warp knitting machine with single needle bar for producing shade nets, knot-free nets and sports barrier nets
Applications

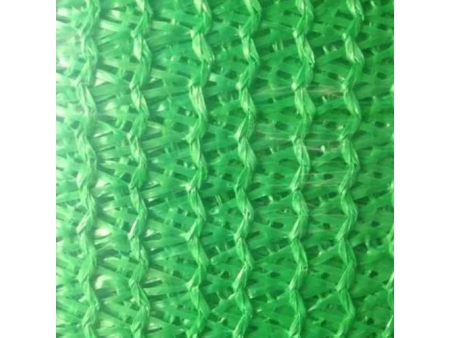

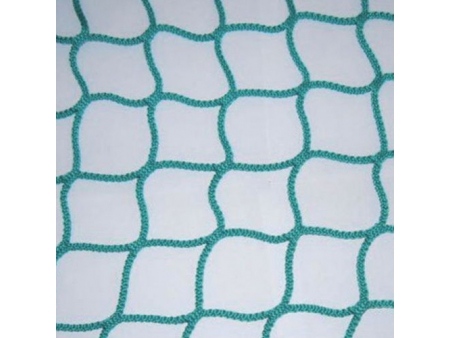

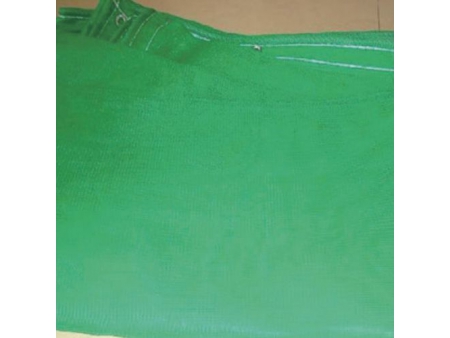

Sunshade nets, knot-free fishing nets, synthetic mesh, knitted mesh fabric, safety nets, sports barrier nets, highway collision prevention nets, etc.
Features
- The raschel warp knitting machine adopts an open type cam with swing arm.
- Net warp knitting machine allows for electronic yarn let-off, let-off by roller, and yarn supply by creel.
Specifications
- Needle type Individual latch needle, block latch needle
- Gauge E2, E3, E6, E9, E12, E18, E22
- Number of bars 2/3/4/5/6/7/8 bars
- Working width 90"/175"/220"/260" /340"/430"540"
- Max. speed 600 rpm
| Machine Model | Dimensions (L×W×H) | Floor Area (m²) | Machine Weight (kg) | Total Power (kW) |
| 3800×2300×2600 | 9.6 | 8500 | 10.75 | |
| 5600×2300×2600 | 13.6 | 8500 | 15.25 | |
| 7600×2300×2600 | 18.24 | 10000 | 15.25 | |
| 8300×2300×2600 | 20 | 11000 | 15.25 | |
| 10800×2300×2600 | 24.84 | 14400 | 24.6 | |
| 12300×9600×2450 | 28.29 | 18800 | 24.6 | |
| 14500×2300×2600 | 33.35 | 22000 | 38.9 |
