Net Knitting Machine
Request a Quote
GE2291 Raschel Machine
Raschel warp knitting machine with single needle bar for producing PE braided nets, architectural nets and road safety nets
Processing materials
Weaving PE plastic threads to make various types of nets.
Applications

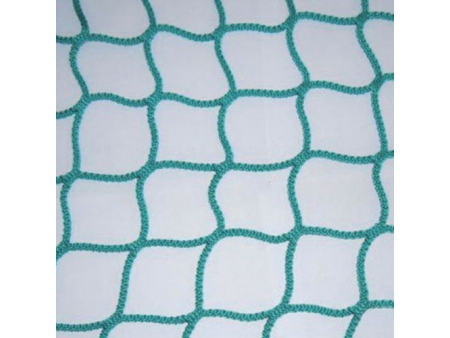

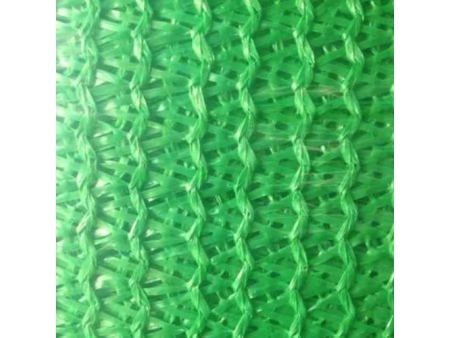

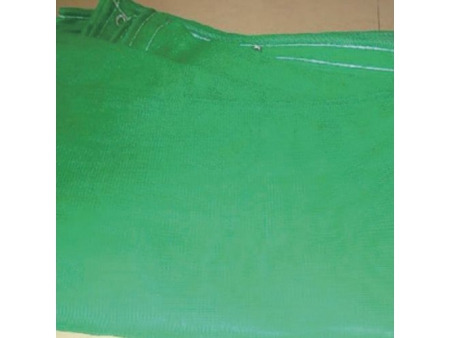

PE braided nets, architectural nets, safety nets, road safety nets, etc.
Features
- The raschel warp knitting machine adopts an oil immersed cam-linkage mechanism.
- Net warp knitting machine features electronic fabric take-up, electronic yarn let-off, let-off by roller or creel, and electronic batching.
Specifications
- Needle type Compound needle
- Gauge E16, E12, E18
- Number of bars 2-6 bars
- Working width 260"
- Max. speed 650 rpm
| Machine Model | Dimensions (L×W×H) | Floor Area (m²) | Machine Weight (kg) | Total Power (kW) |
| GE2291-260" | 8300×7000×2450 | 58.1 | 12000 | 24.6 |
