GE2295-2 Raschel Machine
Raschel warp knitting machine for producing PE braided nets, architectural nets and road safety nets
Processing materials
Weaving PE plastic filaments to make various mesh fabrics.
Applications

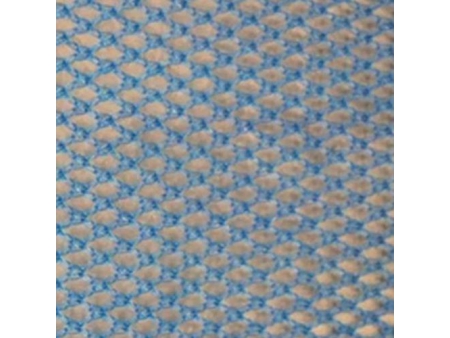

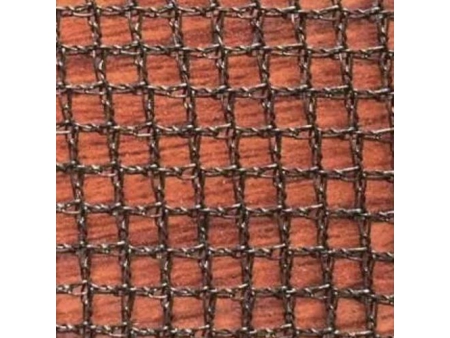

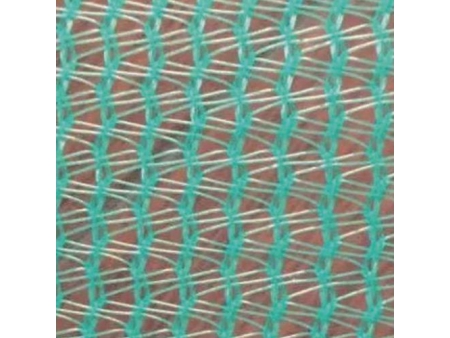

PE braided nets, architectural nets and road safety nets
Features
- Raschel net knitting machine utilizes a crankshaft connecting rod system.
- Net knitting machine uses short latch needles for fast operation and high fabric output speed.
- The net knitting machine is equipped with electronic yarn let-off (EBA), electronic take-up, and electronic batching functions.
Specifications
- Needle type Block latch needle
- Gauge E12, E18, E24
- Number of bars 2 bars
- Working width 138"/260"
- Max. speed 1000 rpm
| Machine Model | Dimensions (L×W×H) | Floor Area (m²) | Machine Weight (kg) | Total Power (kW) |
| 5150×1800×2450 | 9.27 | 8000 | 10.25 | |
| 10800×2300×2600 | 24.84 | 12000 | 17.3 |
