Net Knitting Machine
Request a Quote
GE238 Raschel Machine

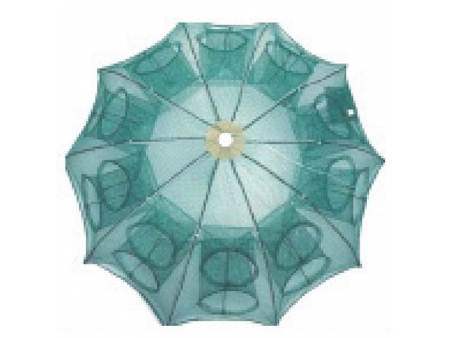

Raschel warp knitting machine for producing deep sea fishing nets, aquaculture nets and umbrella fish trap
Applications

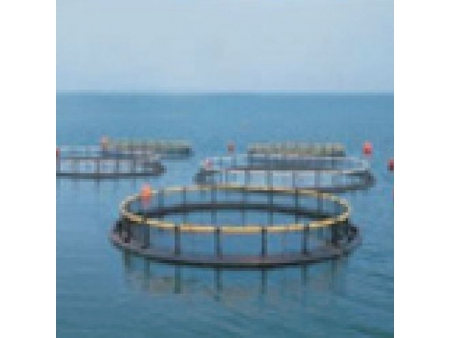

Deep-sea fishing nets and deep-sea aquaculture nets.
Features
- This machine works with an oil-immersed eccentric-links mechanism.
- Uses a special extra-large latch needle for better machine adaptability.
- The net knitting machine has functions of electronic yarn let-off, electronic fabric take-up, and electronic guide bar control (EL).
- This raschel machine allows for knitting variable mesh size in the same net.
Specifications
- Needle type Individual latch needle
- Gauge E1.5, E2, E3, E4, E6
- Number of bars 4-8 bars
- Working width 44"/100"
- Max. woven mesh ≥15mm
- Max. speed 350 rpm
| Machine Model | Dimensions (L×W×H) | Floor Area (m²) | Machine Weight (kg) | Total Power (kW) |
| 2100×2300×2200 | 4.83 | 3000 | 11.6 | |
| 3500×2300×220 | 8.05 | 8500 | 27.5 |
