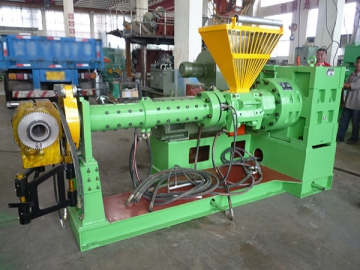

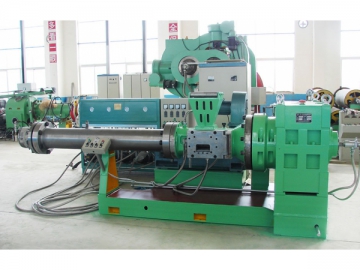

Cold Feed Rubber Extruder
Request a Quote
View All: http://huahanmachine.com
The cold feed rubber extruder uses a gear surface with a hardened surface in order to reduce wear. This rubber extruder is also equipped with an automatic temperature control system, and the motor speed can be adjusted to any value to accommodate various production processes for different extruded products. We offer different types of cold feed rubber extruders, all of which are suitable for the production of mixed rubber strips of different widths and thicknesses, eliminating the need for hot extrusion equipment.
Specifications| Model Item | ||||||
| Screw Diameter | mm | 65 | 90 | 120 | 150 | |
| L/D Ratio | 12 | 12; 14 | 12 | 16 | ||
| Maximum Screw Rotating Speed | r/min | 6-60 | 6-60 | 5-50 | 4.5-45 | |
| SCREW DIA | mm | 79 | 72 | 120 | 145 | |
| Motor Power | kw | 15 | 55-75 | 75 | 185 | |
| Number of Hot Water Circulating Zones | 3 | 4 | 4 | 4 | ||
| Maximum Heating Power of Hot Circulating System | kw | 24 | 48 | 48 | 48 | |
| Power Supply | 380v/50HZ | 380v/50HZ | 380v/50HZ | 380v/50HZ | ||
| Capacity | kg/h | It is decided by the matched head. | ||||
| Overall Dimensions | L | mm | 1,500 | 2,800 | 3,150 | 4,100 |
| W | mm | 800 | 1,400 | 1,510 | 1,810 | |
| H | mm | 1,350 | 1,500 | 1,500 | 1,630 | |
| Gross Weight | t | ~2 | ~4.5 | ~6 | ~8 | |
