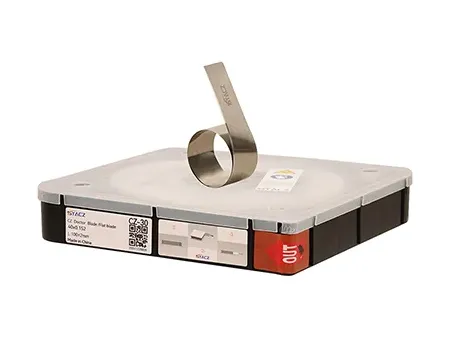

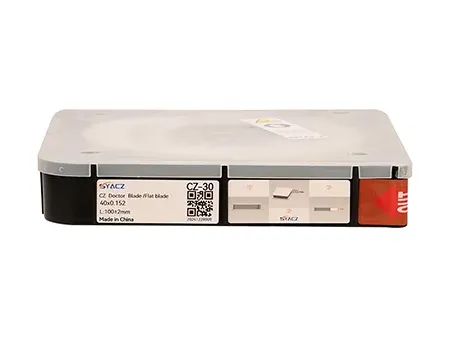

CZ-30 METAL DOCTOR BLADE

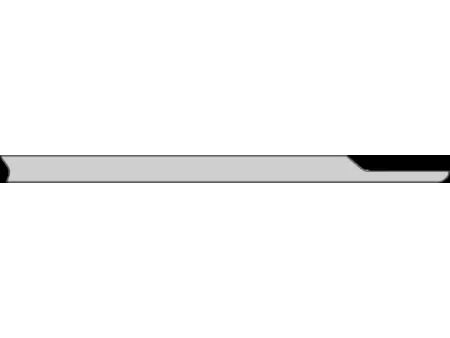

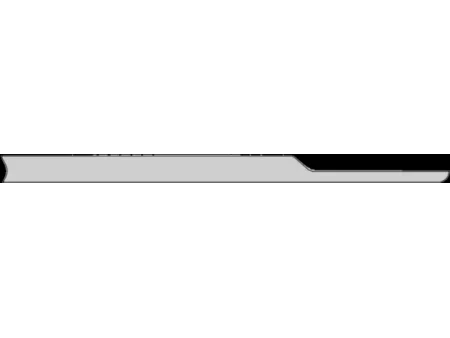

- Short Lamella Blade Edge
- Long Lamella Blade Edge

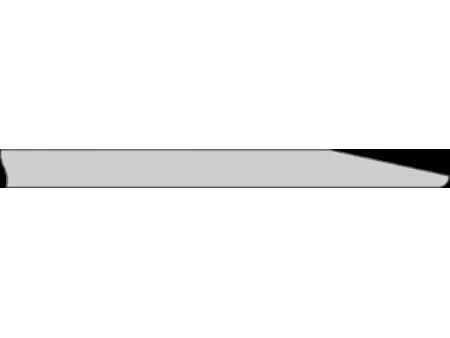

- Short Bevel Blade Edge

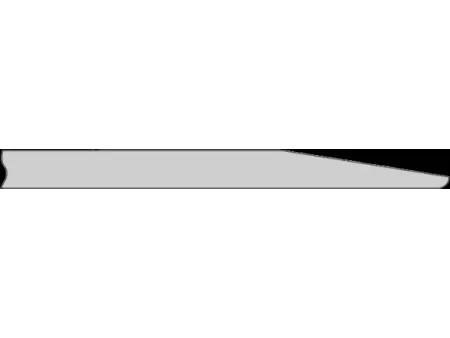

- Long Bevel Blade Edge

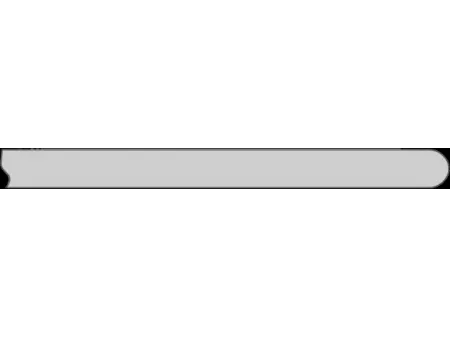

- Round Blade Edge

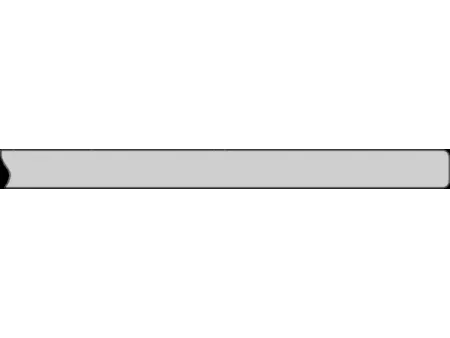

- Square Blade Edge
- Width Range: 8mm-60mm
- Width Tolerance: ±0.1mm
- Thickness Range: 0.152mm-0.3mm
- Thickness Tolerance: ±0.005mm
- Hardness: 630-650HV
- Tensile Strength: 1850-2100Pa
- Straightness: ≤0.5mm/3000mm
- 8mm×0.15mm×100m
- 9mm×0.15mm×100m
- 10mm×0.102mm×200m
- 10mm×0.15mm×100m
- 20mm×0.15mm×100m
- 20mm×0.2mm×100m
- 30mm×0.15mm×100m
- 30mm×0.2mm×100m
- 35mm×0.15mm×100m
- 35mm×0.2mm×100m
- 40mm×0.15mm×100m
- 40mm×0.2mm×100m
- 40mm×0.3mm×100m
- 50mm×0.15mm×100m
- 50mm×0.2mm×100m
- 60mm×0.15mm×100m
- 60mm×0.2mm×100m
Label and barcode printing, QR code printing, Varnish and coating applications
Gravure printing, Flexo printing
Solvent-based ink, Varnish

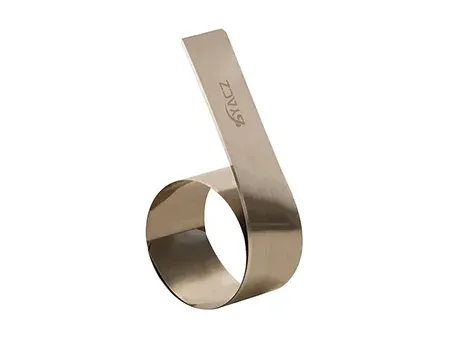

Made from high-quality 20C2 carbon steel, these doctor blades are designed for high-speed printing, handling press speeds of up to 350m/min. Compared to other carbon steel models, they offer 20% greater wear resistance, maintaining a smooth and stable edge throughout extended print runs. This durability helps ensure consistent ink transfer and print quality, even in demanding applications.
20C2 carbon steel’s natural corrosion and oxidation resistance enhances doctor blades longevity, reducing the impact of abrasive ink particles and contaminants. This type of doctor blades is processed by a special polishing treatment which helps reduce ink contamination and prevents particle adhesion, ensuring a cleaner blade surface and minimizing streaks or fine lines in the final print. Their corrosion and oxidation resistance allows for consistent performance in high-demand printing processes, including those using black inks and specialty coatings.
