Hot Feed Rubber Extruder
Request a Quote
View All: http://huahanmachine.com

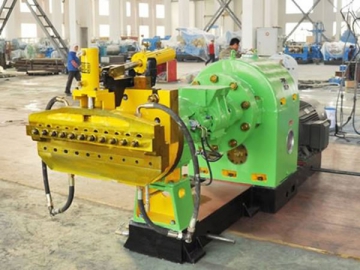

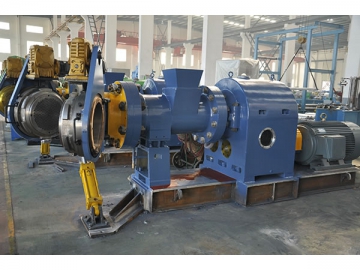

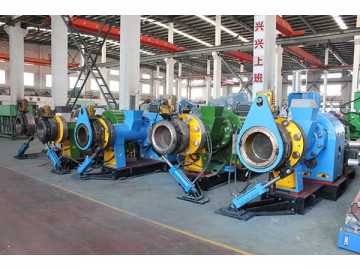

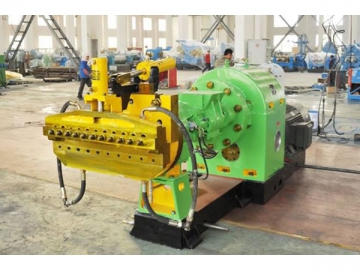

Designed with a compact structure, our hot feed rubber extruder comes with a unitary base to make installation easier. A variable frequency motor is used to ensure an adjustable screw speed, which further promotes the production of profiles with different cross sections.
Specifications| Model Item | ||||||||
| Screw Diameter | mm | 65 | 85 | 115 | 150 | 200 | 250 | |
| L/D Ratio | 4 | 4.8 | 4.8 | 4.4 | 4.4 | 4.5 | ||
| Screw Rotating Speed | r/min | 5~42 | 28, 40, 52, 72 | 20~60 | 10~58 | 10~64 | 10~56.3 | |
| Motor Power | kw | 7.5 | 15 | 37 | 55 | 90 | 110 | |
| Capacity | kg/h | 50~80 | 62~270 | 100~420 | 800 | 1,500~2,200 | 3,600 | |
| Overall Dimensions | L | mm | 1,594 | 2,065 | 2,770 | 3,411 | 4,549 | 4,950 |
| W | mm | 604 | 760 | 655 | 814 | 1140 | 1,150 | |
| H | mm | 1,053 | 1,154 | 1,350 | 1,470 | 1,750 | 1,483 | |
| Gross Weight | t | ~1.2 | ~2.6 | ~3.5 | ~4.8 | ~8 | ~9 | |
