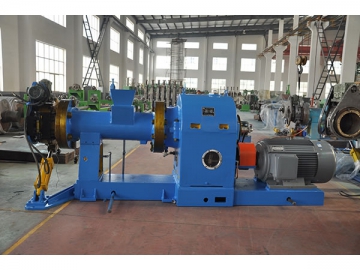

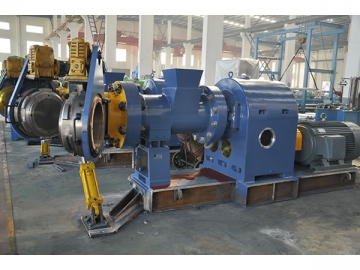

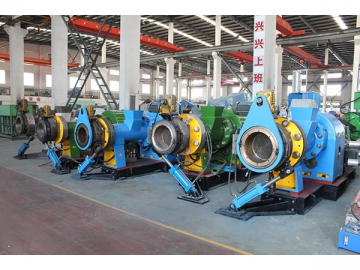

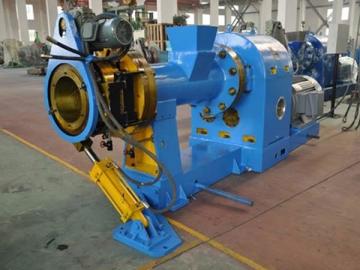

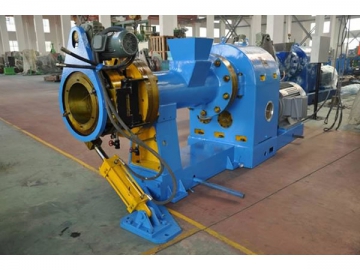

Rubber Strainer
Request a Quote
View All: http://huahanmachine.com
Specifications
| Model Item | ||||||
| Screw Diameter | mm | 115 | 150 | 200 | 250 | |
| L/D Ratio | 5.2 | 5.2 | 5 | 4.2 | ||
| Screw Rotating Speed | r/min | 42.5 | 42.5 | 47.4 | 40 | |
| Cutting Speed | r/min | 17 | 17 | 16 | 16 | |
| Motor Power | kw | 45 | 45 | 75 | 110 | |
| Steam Pressure | Mpa | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | |
| Cooling Water Pressure | Mpa | 0.2 | 0.2 | 0.2 | 0.2 | |
| Capacity | kg/h | 400 | 400 | 800 | 1,200 | |
| Overall Dimensions | L | mm | 3,600 | 3,600 | 4,229 | 4,220 |
| W | mm | 820 | 820 | 2,120 | 1,400 | |
| H | mm | 1,500 | 1,500 | 1,493 | 1,528 | |
| Gross Weight | t | ~4.8 | ~4.8 | ~7 | ~9 | |
