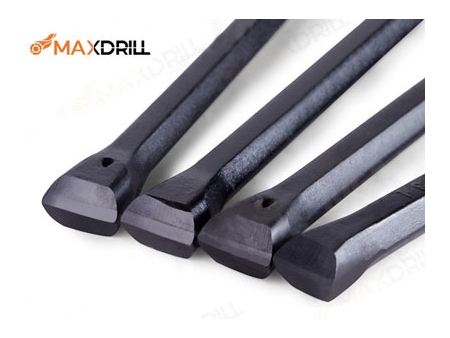

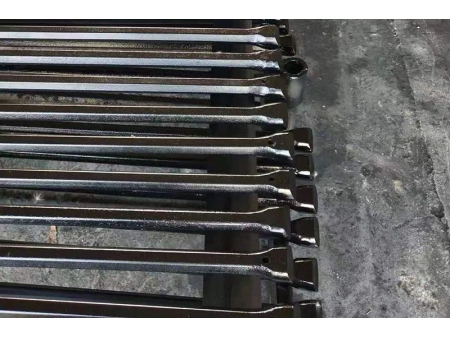

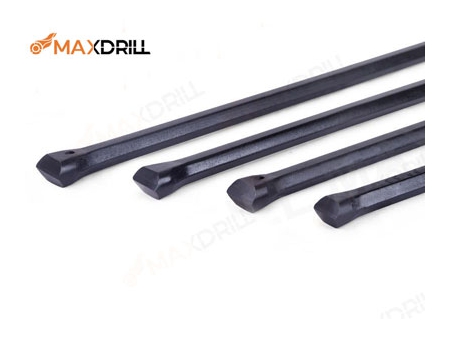

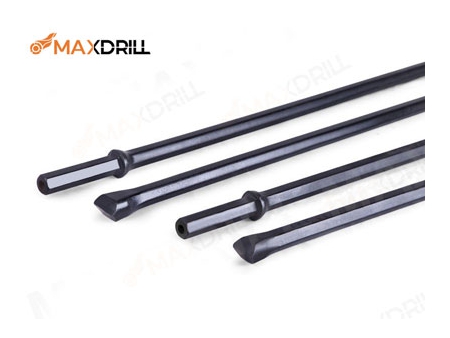

Maxdrill’s integral drill rods have the integral design of drill bits, drill rods and shank adapters. As it is long enough and is able to effectively reduce energy loss, the integral drill rod is suitable for underground mining and drilling small hole that is 24 to 44mm in diameter. The integral drill rod is usually used in air-leg and hand-held rock drills. When the rock is soft, using Maxdrill’ integral drill rods can speed up the drilling process. The integral drill rods have the advantages of reducing energy loss, improving drilling effect and efficiency.

Highlights
  • High spindle speed, with the utilization rate of the percussive force 18% to 25% higher than using separate drill bits;
  • Easy to remove the integral drill rod instead of removing the drill bit, which avoids breakage, cracking of drill bit and breakage of the conical end of drill rod;
  • The worn bit end of the integral drill rod can be re-used as the conical drill bit after polishing.
Basic information
  • Length: 400mm to 8000mm for various applications
  • Size of the end: Hex.25mm, Hex.22mm
  • Bit diameter: 30mm to 44mm
  • Package: in pallet or in bundles
  • Productivity: 20,000psc/month

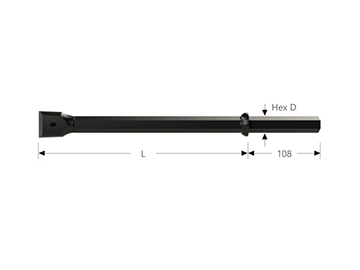

Integral drill steels

Series Dimensions L Dimensions D Part no
mm ft in mm in
H22*108 mm(4 1/4")
11 800
1600
2400
3200
4000
4800
2
5
7
10
13
5
7
3
10
6
1
-
34
33
32
31
30
29
1 11/32
1 19/64
1 1/4
1 7/32
1 3/16
1 9/64
00220834
00221633
00222432
00223231
00224030
00224829
12 800
1600
2400
3200
4000
4800
2
5
7
10
13
5
7
3
10
6
1
-
40
39
38
37
36
35
1 37/64
1 17/32
1 1/2
1 29/64
1 27/64
1 3/8
00220840
00221639
00222438
00223237
00224036
00224835
13 400
800
1200
1600
2000
1
2
3
5
6
4
7
11
3
7
34
33
32
31
30
1 11/32
1 19/64
1 1/4
1 7/32
1 3/16
00220434
00220833
00221232
00221631
00222030
16 600
1200
1800
2400
2
3
5
7
-
11
7
10
35
34
33
32
1 3/8
1 11/32
1 5/16
1 1/4
00220635
00221234
00221833
00222432
17 600
1200
1800
2400
2
3
5
7
-
11
7
10
41
40
39
38
1 5/8
1 37/64
1 17/32
1 1/2
00220641
00221240
00221839
00222438
