Rotary injection machine for TPR/PVC/PUR slipper, sandal and shoe making

This injection moulding machine is specially designed for sandals. To be specific, it can produce monochromatic foam or non-foam soles, sandals and slippers. The single colour sandal injection moulding machine has 12 sets of molds and can make 12 pairs of shoes at a time.

Specifications
Item Unit EA120Q A EA124Q A
Raw materials TPR, PVC, PUR (blowing)
Stations 20 24
Screw diameter mm 70
Maximum injection volume CC 769
Injection pressure MPa 70
Clamping force Tons 60
Yield Pairs/hour 80-120 100-150
Mould space mm 500*240*240
Heating power kW 8
Total power kW 32.5
Dimensions cm 580×360×200
Machine weight Tons 5.8 6.3
Oil consumption L 600
Optional
  • Water cooling system

  • Drying hopper

  • Mould manipulator

  • Energy-saving hydraulic servo control system

System flow chart
Features
  • High quality screw rods made through special techniques are installed, ensuring exclusive durability;
  • Block cylinder is designed with special structure, providing heat insulation and leakage resistance performance;

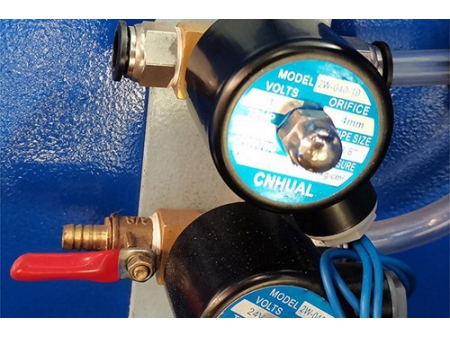

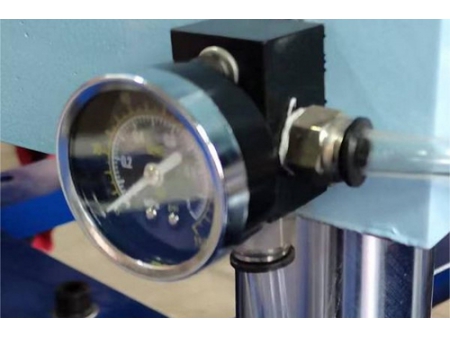

  • Powerful air blowing system has been installed to realize efficient in-feed and out-feed of air, which helps make quality products with 30% less weight;

  • This injection moulding machine has a user-friendly PLC control system with industrial human-machine interface (HMI);

    • PLC control system

    • PLC

    • HMI interface

  • Servo motor and automatic mould manipulator are optional to save energy and reduce labour intensity;

  • Multiple safety measures have been taken, including:

    • Safety sign

    • Emergency stop button

    • Rotary table anti-lifting switch

  • To be specific, the safety sign will remind people of potentially dangerous zones;
  • Photoelectric switch can timely shut down the injection moulding machine to prevent operators accidentally reach out their hands into it;
  • Emergency stop button allows operators to shut down the injection moulding machine when finding something unusual happens;
  • Turn table anti-lift switch sends electric signals to shut down the injection moulding machine to prevent the turn table from being separated from the wheel.

Apart from these safety components, this footwear injection machine is equipped with other devices. Safety door is installed to allow operators to shut down the injection machine when malfunctions happen; safety net is set up to prevent misoperation.

Auxiliary Equipment
  • Cooling tower is installed to bring down the temperature of hydraulic oil and raw materials;

  • Crusher is used to recycle used materials;

  • Vertical mixer blends materials with different colours and turn them into the same colour;

  • Air compressor will be connected to the injection moulding machine to supply air;

  • Drying system eliminates water in air so as to avoid bubbles in finished products and make better foam soles;

Accessories and Components
Parts list
Toolbox / 1pc
Allen key 1.5-10 9 sets
Open-end wrench 6-24 8 sets
Phillips screwdriver (small) / 2pcs
Phillips screwdriver (large) / 1pc
Adjustable wrench 250mm 1pc
Heating ring Ø120*80 mm 1pcs
Heating ring Ø70*50 mm 1pc
Heating rod Ø15.8*100 mm 2pcs
Proximity switch Ø 25*25mm 1pc
Proximity switch Ø 12*12mm 1pc
Thermoelectric coupling K type/5M 2pcs
Oil seal / 2pcs
Plugging rod / 1pc
Plugging bushing / 1pc
Copper gasket / 1pc
Injection nozzle / 1pc
User manual / 1
