Rotary injection machine for producing slippers, sandals and galoshes in TPR/PVC/PUR

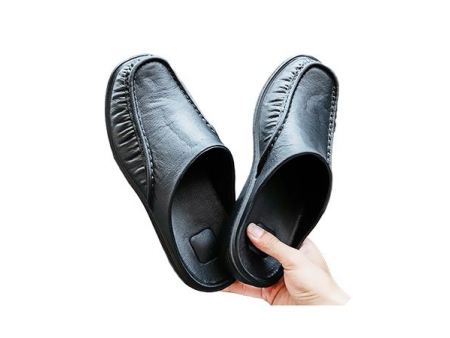

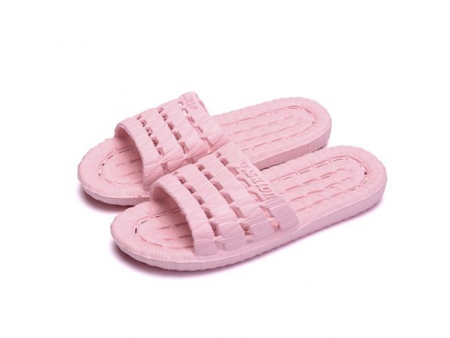

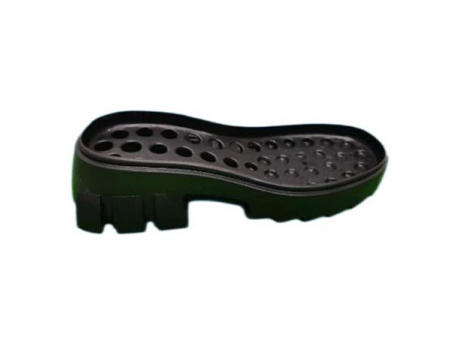

This injection moulding machine is made for producing quality foam and non-foam monochromatic soles, sandals and slippers. The applicable materials include TPR, PVC and PUR. What makes this injection press so popular is that it is equipped with 24 molds and can produce 12 pairs of shoes at a time.

Specifications
Item Unit) EA124Q B EA124Q BV
Raw materials TPR, PVC, PUR (blowing)
Mould structure   Flat V type
Stations   24 24
Screw diameter mm 70
Maximum injection volume CC 769
Injection pressure MPa 70
Clamping force Tons 60
Yield Pairs/hour 100-150
Mould space mm 500*240*240 500*240*280
Heating power kW 8
Total power kW 32.5
Dimensions cm 580×360×220 580×360×250
Machine weight Tons 6.5 7
Oil consumption L 600
Optional
  • Water cooling system

  • Drying hopper

  • Mould manipulator

  • Energy-saving hydraulic servo control system

System flow chart
Features
  • This sandal injection moulding machine is produced in integrated structure that allows for stable and durable operation;
  • Screws rods of this injection moulding machine is made through special techniques, which ensures excellent durability;
  • The sandal injection machine has a block cylinder that prevents leakage and insulates heat;

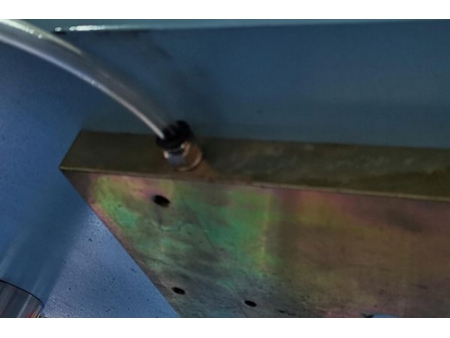

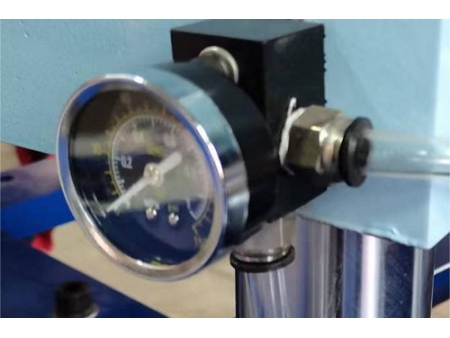

  • Efficient air blowing system is installed to improve the quality and reduce 30% weight of the goods to be made;

  • PLC control system with industrial human-machine interface (HMI) is easy to use;

    • PLC control system

    • PLC

    • HMI interface

  • Servo motor and automatic mould manipulator are optional so as to reduces energy consumption and labour intensity;

  • Several safety measures have been adopted, including:

    • Safety sign

    • Emergency stop button

    • Rotary table anti-lifting switch

The purposes of different measures are that the safety sign indicates potentially dangerous zones; photoelectric switch can timely shut down the injection moulding machine if operators accidentally extend their hands into it; emergency stop button allows operators to shut down the injection moulding machine when finding something unusual happens; turn table anti-lift switch sends electric signals to shut down the injection moulding machine to prevent the turn table from being separated from the wheel.

In addition to the above-mentioned measures, this injection moulding machine is equipped with other devices. Safety door is installed to allow operators to shut down the injection machine when malfunctions happen; safety net is set up to prevent misoperation.

Auxiliary Equipment
  • Cooling tower is installed to bring down the temperature of hydraulic oil and raw materials;

  • Crusher is used to recycle used materials;

  • Vertical mixer blends materials with different colours and turn them into the same colour;

  • Air compressor will be connected to the injection moulding machine to supply air;

  • Drying system eliminates water in air so as to avoid bubbles in finished products and make better foam soles;

Accessories and Components
Parts list
Toolbox / 1pc
Allen key 1.5-10 9 sets
Open-end wrench 6-24 8 sets
Phillips screwdriver (small) / 2pcs
Phillips screwdriver (large) / 1pc
Adjustable wrench 250mm 1pc
Heating ring Ø120*80 mm 1pcs
Heating ring Ø70*50 mm 1pc
Heating rod Ø15.8*100 mm 2pcs
Proximity switch Ø 25*25mm 1pc
Proximity switch Ø 12*12mm 1pc
Thermoelectric coupling K type/5M 2pcs
Oil seal / 2pcs
Plugging rod / 1pc
Plugging bushing / 1pc
Copper gasket / 1pc
Injection nozzle / 1pc
User manual / 1
