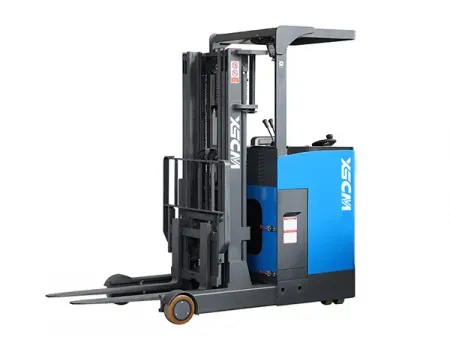

Sit Down Reach Truck
Sit down reach truck is easy to operate, with adjustable armrest and belt for protecting its driver. Compared to stand up reach truck, sit down reach truck has better gradeability, capable of carrying heavier loads in tougher conditions.
Technical ParametersModel | FBR15/1800 | FBR20 | FBR25 | |||
General | Power Type | Battery | ||||
Load Capacity | kg | 1500/1800 | 2000 | 2500 | ||
Load Centre | mm | 500 | 500 | 500 | ||
Service Weight | kg | 2700/2850 | 3100 | 4450 | ||
Chassis | Tyre | PU | PU | PU | ||
Number of wheels front/rear(x = driven wheels) | 2/1X | 2/1X | 2/1X | |||
Front Tyre | 267x135 | 285x135 | 285x135 | |||
Rear Tyre | 310x120 | 343x140 | 343x140 | |||
Track width, front | mm | 1113 | 1185 | 1185 | ||
Track width, rear | ||||||
Wheelbase L1 | 1585.5 | 1585.5 | 1585.5 | |||
Reach Distance O | 600 | 600 | 600 | |||
Dimension | Lift Height H | 3000-8000 | 3000-8000 | 8000 | ||
Fork Size | L4×W×T | 1070×120×35 | 1070×120×40 | 1070×120×40 | ||
Mast Tilt Angle | Fα/Rβ | 3/5 | 3/5 | 2/4 | ||
Mast Lowered Height H1 | mm | 2080(2236S450) | 2080 | 3790(S800) | ||
Mast Extended Height(with backrest) H2 | 4032 | 4032 | 9072 | |||
Width over forks(outside) W5 | 240-800 | 240-800 | 240-800 | |||
Length to face of fork(Without fork/With fork) L | 2095 | 2095/3206 | 2095/3206 | |||
Overall Width W2 | 1260 | 1260 | 1320 | |||
Overhead Guard Height H4 | 2157 | 2157 | 2157 | |||
Assist Grip Height H7 | 1025 | 1025 | 1025 | |||
Overhead Guard Height H4 | 250 | 280 | 280 | |||
Min. Turning Radius Ra | 1860 | 1880 | 1880 | |||
Ground Clearance(Bottom of mast) H5 | 80 | 80 | 80 | |||
Min. Stacking Aisle width for Pallets 1000X1000RASA | 2680 | 2830 | 2080 | |||
Min. Stacking Aisle width for Pallets 1200X1200RASA | 2880 | 3030 | 2180 | |||
Performance | Max. Travel Speed(Full load/Empty load) | km/h | 8/10 | 8/10 | 8.5/9 | |
Max. Lifting Speed(Full load/Empty load) | mm/s | 310/400 | 280/300 | 220/280 | ||
Max. Lowering Speed(Full load/Empty load) | ≤430/≥320 | ≤450/≥320 | ≤500/≥320 | |||
Max. Gradeability(Full load) | % | 12 | 12 | 10 | ||
Power | Battery (voltage/capacity) | V/Ah | 48/375 | 48/400 | 48/400 | |
Battery Size | L×W×T | mm | 1000×400×600 | 1000×400×600 | 1000×400×600 | |
Engine power | Travel(Drive motor) | Kw | 5 | 5 | 5 | |
Lifting(Lift motor) | 11 | 11 | 11 | |||
Type of drive control | AC |
