70mm 15W Speed Control Motor Manufacturer

70mm 15W Speed Control Motor

Request a Quote

View All: http://zd-drivers.com/1-2-2-speed-control-ac-gear-motor.html

Motor Specifications

Model	Output Power W	Voltage V	Frequency Hz	Speed Control Range r/min	Allowance Torque		Starting Torque mN.m	Current A	Capacitor μF
					1200r/min m N.m	90r/min mN.m
3IK15RGN-A	15	1ph 100	50	90～1350	120	35	55	0.35	6.0
			60	90～1650				0.33
3IK15RGN-E	15	1ph 110	60	90～1650	125	35	55	0.30	5.0
		1ph 120						0.32
3IK15RGN-C	15	1ph 220	50	90～1350	120	35	54	0.18	1.2
		1ph 230						0.20
3IK15RGN-H	15	1ph 220	60	90～1650	85	35	52	0.16	1.2
		1ph 230			120		55	0.15

Gear Motor-Torque TableAllowance Torque Unit: N.m

Type Motor/Gearhead	Gear Ratio		3	3.6	5	6	7.5	9	10	12.5	15	18	20	25	30	36	40	50	60	75	90	100	120	150	180	200
	Speed r/min	50Hz	500	417	300	250	200	166	150	120	100	83	75	60	50	41	37	30	25	20	16	15	12.5	10	8.3	7.5
	Speed r/min	60Hz	600	500	360	300	240	200	180	144	120	100	90	72	60	50	45	36	30	24	20	18	15	12	10	9
3IK15RGN-A 3IK15RGN-E 3IK15RGN-C 3IK15RGN-H	3GN()K	50Hz	0.30	0.36	0.51	0.61	0.76	0.91	0.97	13.0	15.0	18.0	1.94	2.30	2.70	3.30	3.48	4.10	5.00	5.00	5.00	5.00	5.00	5.00	5.00	5.00
3IK15RGN-A 3IK15RGN-E 3IK15RGN-C 3IK15RGN-H	3GN()K	60Hz	0.26	0.31	0.43	0.51	0.64	0.77	0.80	1.10	1.30	1.50	1.64	1.90	2.30	2.80	2.88	3.50	4.20	5.00	5.00	5.00	5.00	5.00	5.00	5.00

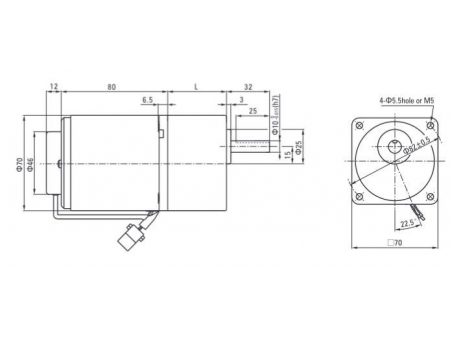

L1=42mm

Applications

Food and Beverage Processing Sausage grillers, milk tea sealing machines, ice makers, automatic tea-roasting machines, meat grinders.

Packaging Equipment Carton sealers, kraft paper packaging machines.

Semiconductor Manufacturing: Precision handling and assembly equipment.

Battery Manufacturing Lithium battery processing systems.

Intralogistics Conveyor systems for logistics and warehousing.

Printing and Binding Conical plastic cup printers, industrial printers, paper mounting machines.

Woodworking Machinery Edge banding machines, sawing equipment, automated woodworking production lines.

Textile Industry Textile production equipment.

Livestock Management Manure removal systems, pig farming equipment, feeding systems.

Inspection Systems Security inspection machines.

Dust Removal Systems Industrial dust removal equipment.

Injection Molding Auxiliary systems for injection molding machines.

Access Control Systems Speed gates, channel gates.
