70mm 15W Brake Motor

Request a Quote

View All: http://zd-drivers.com/1-4-2-brake-ac-gear-motor.html

Motor Specifications

Model	Rating	Output Power W	Voltage V	Frequency Hz	Current A	Starting Torque mN.m	Rated Torque mN.m	Rated Speed r/min	Capacitor μF
3RK15GN-AM	30min	15	1ph 100	50	0.40	110	125	1200	7.0
				60	0.56	105	105	1450
3RK15GN-EM	30min	15	1ph 110	60	0.43	85	105	1450	6.0
			1ph 120		0.42
3RK15GN-CM	30min	15	1ph 220	50	0.23	110	125	1200	1.5
			1ph 230
3RK15GN-HM	30min	15	1ph 220	60	0.20	85	105	1450	1.5
			1ph 230			90
3RK15GN-SM	30min	15	3ph 220	50	0.14	220	125	1200	-
				60	0.12	180	105	1450
3RK15GN-S3M	30min	15	3ph 380	50	0.08	220	125	1200	-
				60	0.06	180	105	1450

Gear Motor-Torque TableAllowance Torque Unit: N.m

Type Motor/Gearhead	Gear Ratio		3	3.6	5	6	7.5	9	10	12.5	15	18	20	25	30	36	40	50	60	75	90	100	120	150	180	200
	Speed r/min	50Hz	500	417	300	250	200	166	150	120	100	83	75	60	50	41	37	30	25	20	16	15	12.5	10	8.3	7.5
	Speed r/min	60Hz	600	500	360	300	240	200	180	144	120	100	90	72	60	50	45	36	30	24	20	18	15	12	10	9
3RK15GN-AM 3RK15GN-EM 3RK15GN-CM 3RK15GN-HM 3RK15GN-SM 3RK15GN-S3M	3GN()K	50Hz	0.30	0.36	0.51	0.61	0.76	0.91	0.97	1.30	1.50	1.80	1.94	2.30	2.70	3.30	3.48	4.10	5.00	5.00	5.00	5.00	5.00	5.00	5.00	5.00
	3GN()K	60Hz	0.26	0.31	0.43	0.51	0.64	0.77	0.80	1.10	1.30	1.50	1.64	1.90	2.30	2.80	2.88	3.50	4.20	5.00	5.00	5.00	5.00	5.00	5.00	5.00

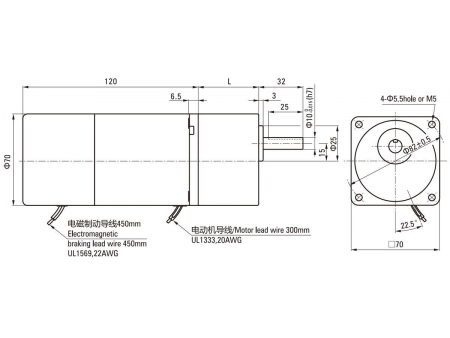

L1=42mm
