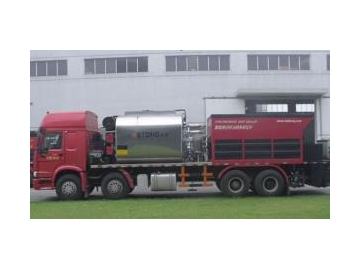

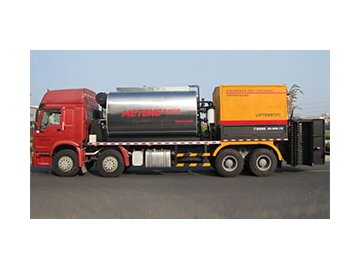

LMT5250TFC Synchronous Chip Sealing Distributors and Equipment
Brief Introduction
LMT5250TFC synchronous Chip Sealing Distributors and Equipment developed by our company is the special machinery for asphalt pavement construction and can be widely applied into the highway operation work of fast synchronous spraying. It features cost-saving, surface wear-resistant, anti-skidding and waterproof. The normal traffic could be resumed soon after the construction. It applies to the construction of the highways at different levels.
Advantages
1. The accurate spraying volume promised the perfect realization of asphalt spraying threefold with good evenness.
2. The complete computer touch screen with video monitoring system makes it possible for us to observe the whole working process.
3. The intense spray system and asphalt aggregate stone collinear spraying system ensure that the asphalt and the building stones will be simultaneously sprayed.
4. LMT5250TFC synchronous Chip Sealing Distributors and Equipment has the most effective heating and circulating thermal system to smooth the pipelines and nozzles. Thus, there is no need to clean them.
5. The nozzles and aggregate doors are controlled by pneumatic system. Each aggregate door and nozzle could be independently controlled by the computer.
6. LMT5250TFC synchronous Chip Sealing Distributors and Equipment could automatically feed and discharge asphalt to improve its working efficiency.
7. It is characterized by its compact size and good-looking appearance.
| Item | Parameter |
| Model | LMT5250TFC |
| Chassis Model | SX1255JM434 |
| Pattern | Flathead, 6×4 rear drive |
| Power (kw/r/min) | 199/1900 |
| Seating Capacity | 2 persons |
| Outline Dimension (mm) | 10200×2490×3430 |
| Curb Weight of Complete Vehicle (kg) | 15540 |
| Max. Total Weight (kg) | 25000 |
| Wheelbase (mm) | 4325 1350 |
| Front Overhang (mm) | 1525 |
| Rear Overhang (mm) | 3000 |
| Top Speed (km/h) | 90 |
| Fuel Consumption for one hundred kilometers (L) | < 19 |
| Working Speed (km/h) | 1.2~6.5 |
| Rated Capacity for Asphalt Tank (L) | 5000 |
| Capacity of Aggregate Bin (m3) | 8 |
| Stone Diameter (mm) | 5-25 |
| Spray Width (m) | ≤3.5 |
| Asphalt Spray Volume (L/m2) | 0.6~2.5 |
Construction Case

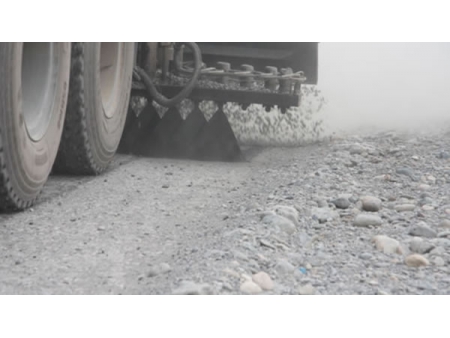

- Metong's synchronous Chip Sealing Distributors and Equipment in Jiangsu
- The fiber spray pole is at the middle of the asphalt spray poles. 36 fiber crackers are scattered on the fiber spray pole with the space of 100mm.
-
-

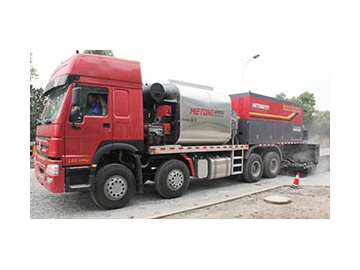

- Fiber Chip Sealing Distributors and Equipment designed to synchronously spraying asphalt / bitumen, fiber, and aggregate. Chip Sealing Distributors and Equipment technology suitable to the construction and maintenance of the all grade roads. It’s using computer controlling system for setting the sprayer value to ensure the quality of the materials onto the road construction.

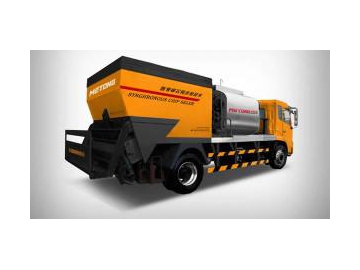

- LMT5312TFC intelligent asphalt synchronous sealer honorably launched by Metong has several advantages such as saving cost, good wear resistance and water proof performance.
- This chip spreader is cost saving, wear resistant of surface, anti-skid and water proof, it can rapidly recovery the traffic after construction, so that it is suitable for different grades of highway construction.
