Crack Filling and Sealing Equipment（Road Sealing Machine）
Our road sealing machine is used for road crack repair and subjected to following processes of petroleum base melting, heating, stirring and cycling. The machine consists of power supply, chassis frame, hydraulic system, hot oil heating system, heat-transfer melting container, re-circulating conveyor for sealing material, stirrer, and electronic control system. Additionally, the heat-transfer oil pump, recirculating pump for sealing material, and stirrer use hydraulic drive systems and, due to compact design, it is easy to achieve automatic control. The volume of sealing material discharged can be adjusted by variable frequency motor, and material can be timely distributed by pump to increase wear-resistance of discharging pump and extend its service life.
The road sealing machine can easily solve the pollution problem caused by dropping material due to its back suction function. The material storage container can be indirectly heated by heat-transfer oil. The container's vertical stirrer ensures material at a uniformed temperature, so the material can avoid being burnt and aging. The road sealing machine features automatic temperature control and is equipped with a digital display ensuring stable operation and high precision.
Technical Specifications of the Road Sealing Machine| Dimension | 4500mm x 2150mm x 2300mm |
| Max. Power of Diesel Engine | 22.5 KW |
| Sealing Material Tank Capacity | ≤600L |
| Hydraulic Oil Tank Capacity | 145L |
| Diesel Oil Tank Capacity | 145L |
| Hot Oil Expansion Tank Capacity | ≥30L (60L total capacity) |

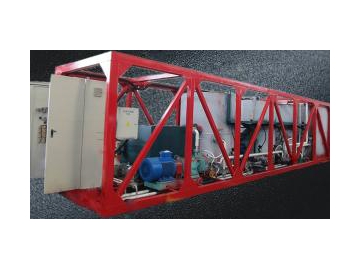

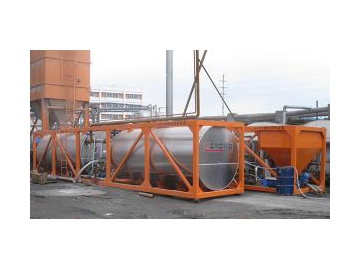

- This plant was designed to produce crumb rubber modified bitumen (asphalt rubber-AR). We are the first and the only one factory cooperated with USA technology. We are now have container frame type and mobile type, with the capacity from 10t/h to 30 t/h. Specially suitable for different projects requirement.

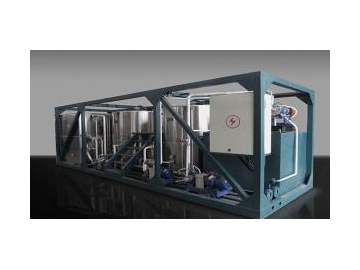

- Modified Emulsion Asphalt Plant has large touch screen, human interface, convenient for operating, and adopt high grade PLC control, safety and reliable.
-
-
- We mainly offer MTR10A Modified Emulsified Asphalt Equipment for midrange servers. This equipment quality is guaranteed. It features energy conservation, easy installation and easy use.

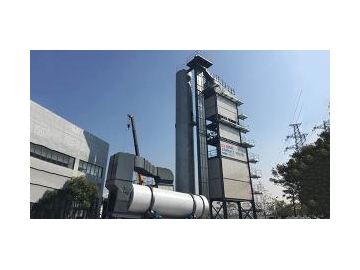

- Near 20 years experience on asphalt related machines and based on site experience and cooperation with European technology, our designed Asphalt batch plant is kind of environment plant, very popular for construction and maintenance work of high grade road, airport etc. With high efficiency, stability.
