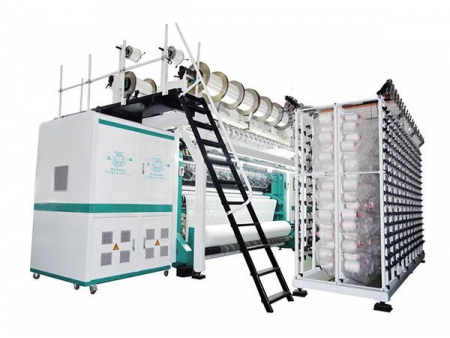

GE290-DELJ Raschel Machine
Multi-bar raschel warp knitting machine for producing lace fabrics and jacquard fabrics
Applications
High-end elastic lace fabrics and jacquard fabrics for ladies’ intimate apparel, clothing, and home decor.
Features
- Multi-bar raschel warp knitting machine uses a cam-link drive mechanism.
- The combination of multi-bar and electronic controlled jacquard bar technology allows the producing of patterned fabric.
- Lace knitting machine adopts servo system to control the shog distance of guide bars, increasing the range and variation of patterns.
- The lace warp knitting machine is equipped with automatic equipment such as electronic yarn let-off, electronic fabric take-up, and electronic batching.
Specifications
- Needle type Compound needle
- Number of bars 75/1 (1 ground bar, 1 spandex bar, 1 jacquard bar, 72 pattern bars)
- Number of bars 83/1 (1 ground bar, 1 spandex bar, 1 jacquard bar, 80 pattern bars)
- Gauge E18, E24
- Working width 134"/200"
- Max. speed 800 rpm
| Machine Model | Dimensions (L×W×H) | Floor Area (m²) | Machine Weight (kg) | Total Power (kW) |
| 8050×6650×5050 | 53 | 12000 | 13.75 | |
| 9800×6250×5000 | 61 | 18000 | 15.75 | |
| 9050×7000×4500 | 63 | 12000 | 13.75 | |
| 11000×7000×4500 | 77 | 18000 | 15.75 |
