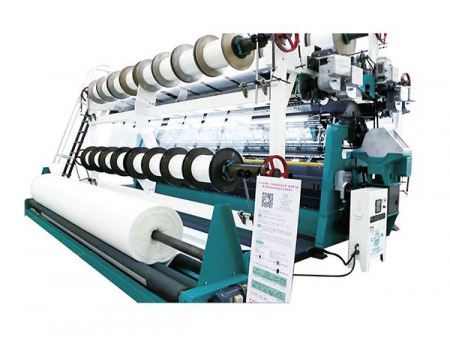

GE289 Raschel Machine

Double needle bar raschel knitting machine for producing blankets and plush fabrics

Applications

Eco-friendly air conditioning filter materials, short, medium, and long plush fabrics and blankets with jacquard patterns.
Blankets and plush fabrics used in apparel, plush toys, blanket, decorative cloth, etc.

Features
  • Blanket warp knitting machine uses an open cam-linkage mechanism and fixed ground bars.
  • Raschel warp knitting machine has functions of electronic yarn let-off and electronic fabric take-up.
  • Finished plush products have a pile height of 5-25mm.
Specifications
  • Needle type Individual latch needle, block latch needle
  • Gauge E16, E18, E22
  • Number of bars 5 bars
  • Distance between knocking-over bar 10-50mm
  • Working width 90"/110"/138"/192"
  • Max. speed 650 rpm
Machine Model Dimensions (L×W×H) Floor Area (m²) Machine Weight (kg) Total Power (kW)
GE289-192" 6900×5600×3600 38.6 15000 10.5
