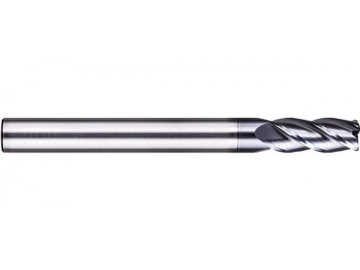

UC-SH4 General Purpose Solid Carbide End Mill - Square End - 4 Flutes - Long Shank

UC-SH4 General Purpose Solid Carbide End Mill - Square End - 4 Flutes - Long Shank
UC-SH4 General Purpose Solid Carbide End Mill - Square End - 4 Flutes - Long Shank
UC-SH4 General Purpose Solid Carbide End Mill - Square End - 4 Flutes - Long Shank
Request a Quote
View All: http://carbide-toolings.com/1-2-3-solid-carbide-end-mills.html
Request a quote

Unit: mm

Order CodeCutting Diameter (D)Length of Cut (Lc)Overall Length (L)Shank Diameter (d)Type
UC-SH4-03012
312754A
UC-SH4-04015
415754B
UC-SH4-06020
620756B
UC-SH4-08025
8251008B
UC-SH4-10030
103010010B

Type A: the cutting diameter is smaller than the shank diameter
Type B: the cutting diameter is equal to the shank diameter
