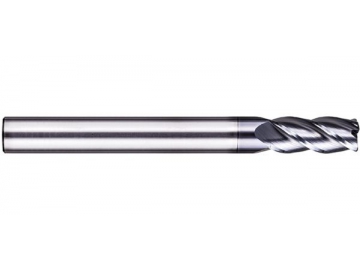

UC-RH4 General Purpose Solid Carbide End Mill - Corner Radius - 4 Flutes - Long Shank
Request a Quote
Request a quote
Unit: mm
| Order Code | Cutting Diameter (D) | Length of Cut (Lc) | Corner Radius (r) | Overall Length (L) | Shank Diameter (d) | Type |
UC-RH4-04005 | 4 | 11 | 0.5 | 75 | 4 | B |
UC-RH4-06005 | 6 | 16 | 0.5 | 75 | 6 | B |
UC-RH4-06010 | 6 | 16 | 1 | 75 | 6 | B |
UC-RH4-08005 | 8 | 20 | 0.5 | 100 | 8 | B |
UC-RH4-08010 | 8 | 20 | 1 | 100 | 8 | B |
UC-RH4-10005 | 10 | 25 | 0.5 | 100 | 10 | B |
UC-RH4-10010 | 10 | 25 | 1 | 100 | 10 | B |
Type A: the cutting diameter is smaller than the shank diameter
Type B: the cutting diameter is equal to the shank diameter
