Wall-Mounted Enclosure

Request a Quote

Website: http://controlcabinet-en.com/1-2-3-wall-mounted-enclosure.html

Electrical Enclosures

CBAE Series

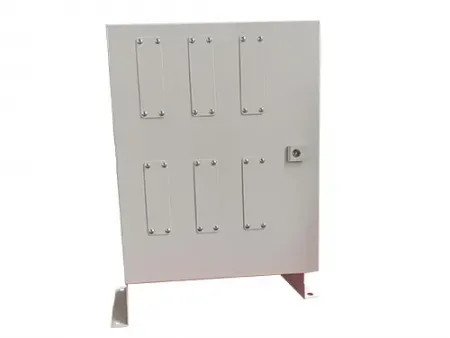

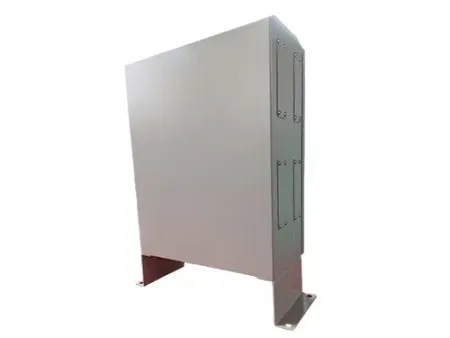

The back panel of the cabinet is pre-punched with mounting holes and fitted with wall-mounting brackets for quick and easy installation.
The door is equipped with vertical welded mounting strips on both sides, pre-drilled for M4 self-tapping screws, allowing convenient component installation.
The door sealing strip works in combination with the grooved cabinet edges, effectively preventing dust and water ingress to provide reliable internal protection.

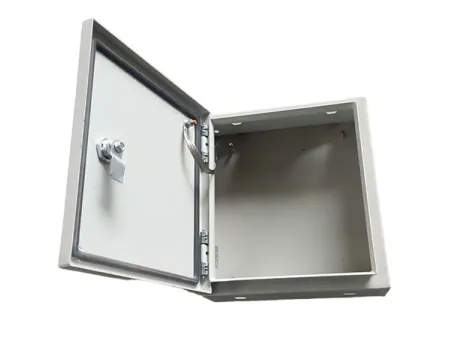

The door is mounted with pin-type hinges, allowing a 110° opening angle, and secured with a single-point lock.
The door can be installed to open from either the left or right side, offering flexibility for on-site installation.
Color options: RAL7032 and RAL7035.
Material: Cold-rolled steel; door thickness 1.5–2.0 mm, cabinet body 1.2–1.5 mm, mounting plate 2.5 mm (galvanized).
Protection Level: IP65.

Specifications

Model	Dimensions
Model	H(mm)	W(mm)	D(mm)
CBAE202015	200	200	150
CBAE252015	250	200	150
CBAE302015	300	200	150
CBAE302515	300	250	150
CBAE303015	300	300	150
CBAE403020	400	300	200
CBAE404020	400	400	200
CBAE503020	500	300	200
CBAE504020	500	400	200
CBAE604025	600	400	250
CBAE605025	600	500	250
CBAE705030	700	500	300
CBAE806030	800	600	300

Applications

Wall-mounted enclosures are widely used in industrial, commercial, and outdoor environments for the protection and control of electrical, electronic, and computer equipment, including:

Industrial automation control systems, such as PLCs, frequency converters, and touch screen devices.
Telecommunication and network terminal installations in wall-mounted configurations.
Power distribution, traffic signal control, water treatment, and municipal monitoring systems.

Standard Configuration

One mounting plate
Two door mounting strips
One set of wall-mounting brackets
Bottom cable entry gland plate
Basic protective packaging
