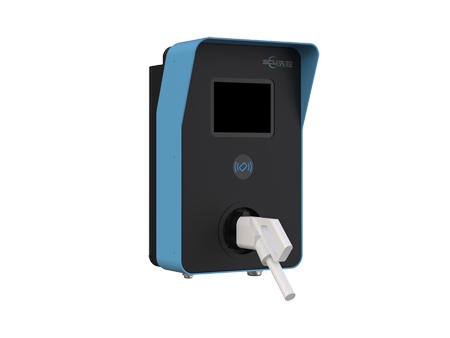

Wall-mounted DC EV Charger
The EVMS wall-mounted DC EV charger supports vehicle charging using CCS and CHAdeMO standards. With up to 30kW of direct current power, this charger can be configured with either a single or dual connector to meet the evolving needs of each customer. Its compact and attractive design is ideal for both indoor and outdoor installations, making it suitable for various environments.
Applications
This EV charger is perfect for service areas, highway public charging zones, commercial fleet operators, EV infrastructure operators, electric vehicle garages, and EVSE (Electric Vehicle Supply Equipment) providers. It is compatible with vehicles from manufacturers like BMW, Volkswagen, General Motors, Porsche, Audi, Nissan, Mitsubishi, Peugeot, Citroën, Kia, Renault, Daimler, Tesla, Smart, and Mercedes.
Features
- Compatible with single connector CCS1/CCS2 and CHAdeMO, providing versatile charging options.
- The entire system operates at an efficiency of ≥95%, ensuring energy-efficient performance.
- Simple installation process and user-friendly operation.
- Features a touchscreen display that is readable even under sunlight, enhancing usability.
- Designed with integrated safety features to ensure secure operation.
- Robust construction that ensures long-lasting durability, suitable for various environmental conditions.
- Supports OCPP (Open Charge Point Protocol) for smart communication and integration with other systems.
- Operates with minimal noise, providing a quiet charging experience.
- Offers multi-language operation to cater to diverse users.
- Available customization to meet specific needs and preferences.
Technical parameters
| Model | EVMS-30 |
| System capacity | 30kW |
| Input parameters | |
| Voltage | 400 VAC, P N PE |
| Voltage range | 304~456VAC |
| Power factor | > 0.99 |
| Frequency | 50/60 Hz |
| Output parameters | |
| Connectors | CCS2, CHAdeMO, AC Type 2 |
| Voltage range | 50-1000VDC |
| Current | Maximum 100A |
| Power | 30kW |
| Overall efficiency | 95% |
| Other parameters | |
| Display | 10.4" TFT touch screen |
| RFID system | ISO/IEC14443A, MIFARE |
| Network connection | 4G | LAN | Wi-Fi(auto switching from LAN to 4G) |
| Communication protocols | OCPP1.6J (OCPP 2.0 upgradable) |
| Environment | Indoor / outdoor |
| Operating temperature | -20℃-60℃ |
| Storage Temperature | -40 ºC to 70 ºC |
| Operating humidity | 95% non-condensing |
| Altitude | 2000 m |
| Protection level | IP54, IK10 |
| Acoustic noise | < 55 dB |
| Compliance and safety | CE, IEC EN 61851, EN 62196,DIN 70121, ISO 15118 |
