8T Truck Cranes, STSQ8D

Request a Quote

View All: http://heavy-crane.com/1-2-4-8t-truck-mounted-crane-stsq8d.html

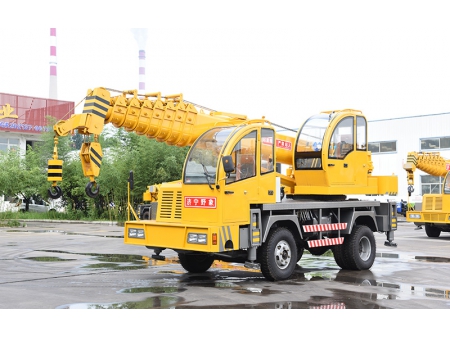

STSQ8D 8-ton truck-mounted crane is equipped with our self-developed chassis that is characterized by compact structure and small turning radius, so it is perfect for moving loads in tight outdoor and indoor spaces or difficult-to-access worksites. The maximum lifting height can reach 31m. This telescopic truck-mounted crane features extendable supporting frame and double-section stabilizing leg, making the performance of the crane more stable.

Features

Self-developed chassis, ensuring stable and reliable performance;
Large-volume fuel tank allows for long-distance travelling;
Compact size ensures that the truck can easily move loads in tight outdoor and indoor spaces;
Wider outrigger span provides guaranteed safety and stability for lifting operations;
360-degree rotating platform;

Specifications

Max. loading capacity: 8t

Max. lifting height: 31m

Longitudinal outrigger span: 5.95m

Transversal outrigger span: 5.94m

Boom: 7 sections (5m per section)

Frame extension length: 1.3m

Dimensions: 7.8m*2.0m*2.9m

Motor power: 11kW

Slewing speed: 0-2.8r/min

Engine power: 51kW
