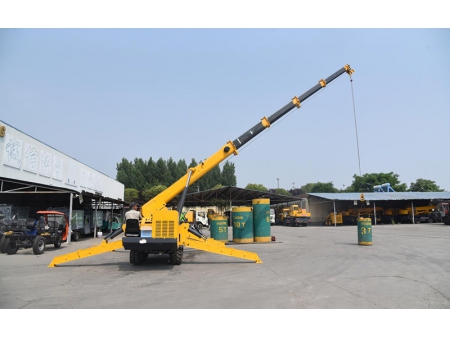

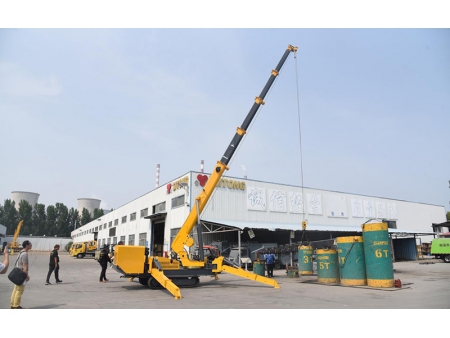

8T Crawler Spider Crane
Request a Quote
Powered by a high-performance QUANCHAI 490 engine, the 8T crawler spider crane offers a maximum working radius of 16.8m. This robust crawler spider crane is equipped with adjustable outriggers and compact footprint making it ideal for tight spaces and rugged terrains.
Specifications
| Crane capacity | 8T×2.5m | |
| Max. working radius | 16.8m | |
| Max. lifting height | 17.8m | |
| Winch | Lifting speed | 10m/min (4 ropes) |
| Wire rope size | Ø11mm×45m | |
| Telescopic system | Boom type | Hexagonal shaped boom, 5 sections |
| Telescopic boom length | 4.65-16.4m | |
| Telescoping speed | 12.3m/54s | |
| Derricking angle/speed | 0-78°/13s | |
| Slewing angle/speed | 0-360°(continuous)/38s | |
| Outrigger | Outrigger action | Manual hydraulic |
| Max. extension | One-side lateral extension 3.1m Total span 7.5m | |
| Traction system | Drive | Hydraulic motor |
| Travel speed | 0-3km/h | |
| Gradeability | 32° (36%) | |
| Electric motor | Voltage | AC380V |
| Engine | Manufacturer | QUANCHAI |
| Type | 490 | |
| Starting method | Electric | |
| Starting temperature | -5°C to 40°C | |
| Fuel | Diesel | |
| Battery capacity | 12V 45AH | |
| Emission standard | China II | |
| Operation system | Type of operation (boom/outrigger) | Manual operation, manual travel |
| Operating characteristics | Manual operation | |
| Standard configuration | Diesel engine and electric motor (dual drive) | |
| Dimensions | 5100×1600×2150mm | |
