8T Boom Truck, SST8S4

Request a Quote

View All: http://heavy-crane.com/1-3-6-8t-boom-truck-sst8s4.html

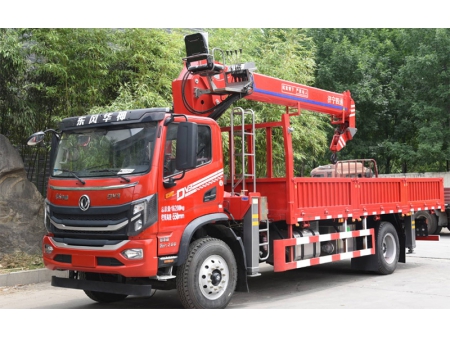

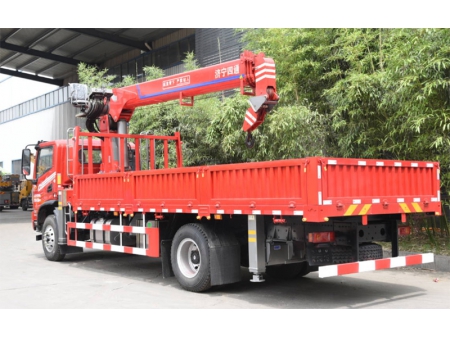

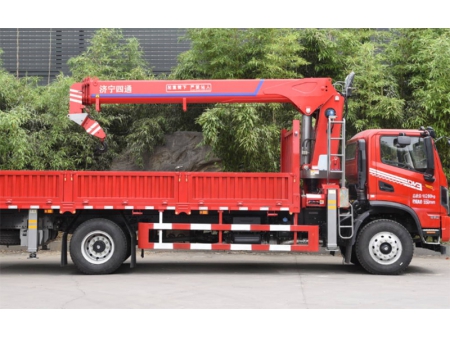

Our SST8S4 8-ton boom truck uses Dongfeng truck chassis and Yuchai 180HP engine, the maximum lifting height can reach 14m. The boom truck is configured with a telescopic boom having horizontal supporting cable and 360-degree rotating platform, allowing for easy hoisting and placement of materials or cargos on the jobsite.

Features

The telescopic boom features U-shaped cross section, providing a greater resistance to load-induced deflection;
Equipped with over-winding protection system to avoid safety hazards caused by breakage of wire rope;
Adopting integrated slewing mechanism;
Four hydraulic stabilizer legs ensure high stability and versatility for lifting operation;
Fitted with load-sensing hydraulic system, providing good adaptability and high working efficiency;

Specifications

Max. loading capacity: 8t

Max. lifting height: 14m

Outrigger span: 5.7m

Boom: 4 sections (4m per section)

Main boom length: 4.4m-13.2m

Max. lifting moment: 20t.m

Boom raising angle: 0-80°

Slewing angle: 360°

Slewing speed: 2.5r/min
