GE290-J Raschel Machine

Raschel warp knitting machine with single needle bar for producing jacquard shoe uppers

Applications

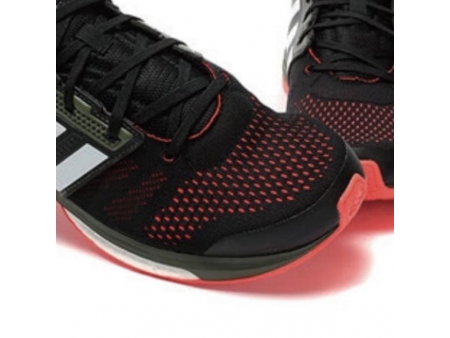

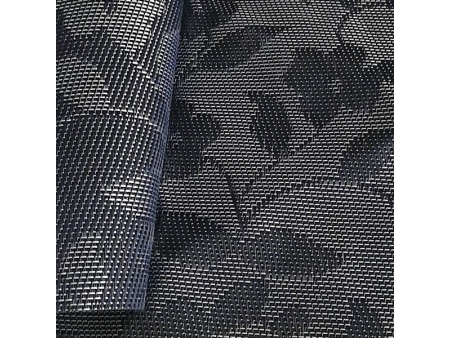

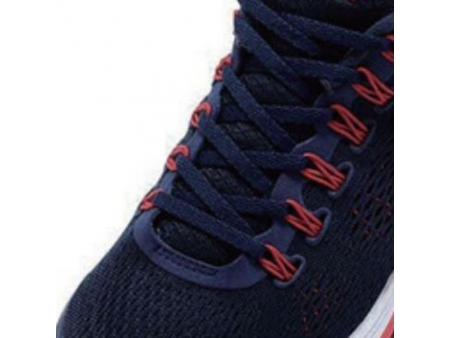

Thin jacquard shoe fabrics for mesh fabrics, garment linings, and home textile.

Features
  • Shoe fabric warp knitting machine uses the eccentric-link drive mechanism.
  • This warp knitting machine utilizes compound needles, which can actively knock over from the bar, ensuring faster production speeds and higher quality.
  • The Raschel knitting machine is equipped with electronic yarn let-off, electronic take-up and electronic jacquard bar control functions.
Specifications
  • Needle type Compound needle
  • Gauge E22
  • Number of bars 5 bars
  • Working width 132"
  • Max. speed 550 rpm
Machine Model Dimensions (L×W×H) Floor Area (m²) Machine Weight (kg) Total Power (kW)
GE290-J-132" 5800×4500×3600 26.1 10000 11.75
