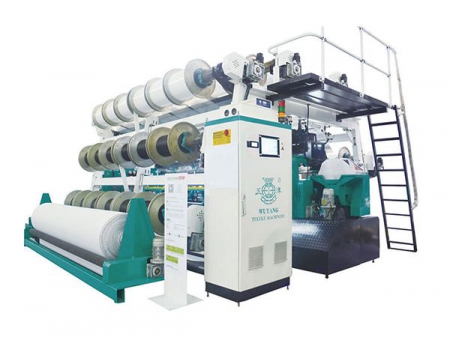

GE2298 Raschel Machine

Double needle bar raschel knitting machine for producing spacer textiles with 3D structure used in mattress and upholstery

Applications

Eco-friendly spacer textiles with 3D structure used in mattress and upholstery, picnic mats, car decorations, air conditioning filters, etc.

Features
  • Jacquard spacer fabric warp knitting machine uses an oil immersed cam-linkage mechanism.
  • The spacer fabric warp knitting machine comes with fixed ground bars.
  • Jacquard spacer fabric warp knitting machine has functions of electronic yarn let-off, electronic guide bar control (EL), and electronic fabric take-up.
Specifications
  • Needle type Individual latch needle
  • Gauge E6, E8, E9, E11, E12, E14, E16, E18, E22
  • Number of bars 5/6 bars
  • Distance between knocking-over bar 4-50mm
  • Working width 90"/100"/110"
  • Max. speed 650 rpm
Machine Model Dimensions (L×W×H) Floor Area (m²) Machine Weight (kg) Total Power (kW)
2298-90" 3900×6300×3400 24.6 8000 9.5
2298-100" 4000×6300×3400 25.2 9500 10.5
2298-110" 4500×6300×3400 28.4 11000 12
