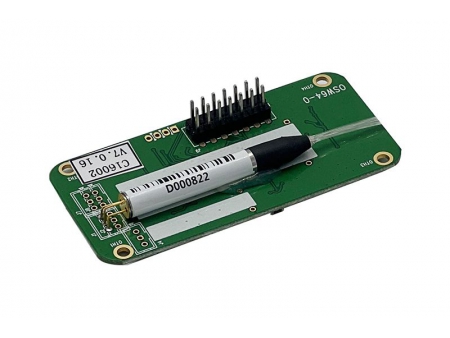

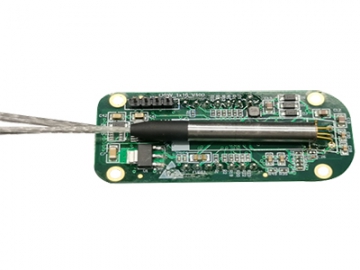

External PCB1 (1×2 to 1×64)

This MEMS 1xN single mode optical switch comes with an external PCB, and is offered with port configurations of 1×2 to 1×64. Based on Micro-Electro-Mechanical System (MEMS) technology, the MEMS optical switch allows channel selection between single input fiber and up to N output fibers. The MEMS mirror rotates to direct the optical light to the desired output fiber, thus enabling the optical switch to transmit, redirect and block optical signals.

The MEMS 1xN single mode optical switch is a bi-directional switch that has extensive applications including optical fiber communication and fiber sensing. Amazelink, a specialist MEMS optical switch manufacturer, supplies a variety of optical switches that are RoHS compliant and Telcordia GR-1073-CORE approved.

Features
  • Compact size
  • High reliability and durability
  • Fast switching speed
  • Telcordia GR-1073-CORE and RoHS compliant
Applications
  • Optical communication
  • Fiber sensing
  • Remote fiber monitoring (working with OTDR or OCM)
  • Optical network routing
  • Measurement resource sharing
  • Optical network protection and restoration
Schematic Diagram
Optical Specifications
PARAMETER UNIT VALUE
Wavelength nm 8:850 only 9:980 only 13:1290 ~ 1330 15:1525 ~ 1568
Test Wavelength nm 1310 / 1550 / 1625 or 1650
Insertion Loss 1 x 2 dB ≤ 0.6, typical 0.5
1 x 4 / 8 ≤ 0.8, typical 0.6
1 x 12 / 16 ≤ 1.0, typical 0.9
1 x 24 / 32 ≤ 1.3, typical 1.1
1 x 48 / 64 ≤ 1.5, typical 1.2
1 x 96 / 128 ≤ 2.0, typical 1.6
Return Loss dB ≥ 45
Repeatability dB ≤ 0.1
Crosstalk dB ≥ 40
PDL 2 < N ≤ 64 dB ≤ 0.2
64 < N ≤ 128 ≤ 0.4
WDL 2 < N ≤ 64 dB ≤ 0.3
64 < N ≤ 128 ≤ 0.6
TDL 2 ≤ N ≤ 16 dB ≤ 0.3
16 < N ≤ 64 ≤ 0.4
64 < N ≤ 128 ≤ 0.7
Switch Time 2 ≤ N ≤ 16 ms ≤ 5
16 < N ≤ 64 ≤ 10
64 < N ≤ 128 ≤ 15
Durability cycle ≥ 1 x 109
Maximum Optical Power mW ≤ 500
Latching Type   Non-latching
