MEMS 1xN Single Mode Optical Switch
Cylindrical (1×17 to 1×32)

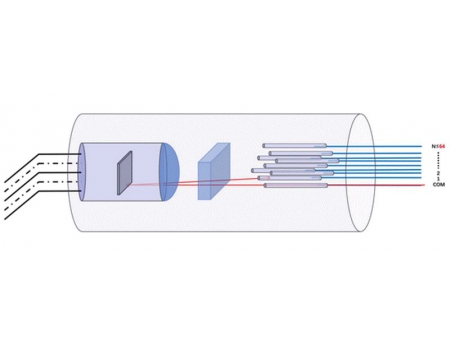

This MEMS 1xN single mode optical switch, based on Micro-Electro-Mechanical System (MEMS) technology, comes in small cylindrical package and port configurations ranging from 1×17 to 1×32. The MEMS optical switch is an optical path control device that provides optical signal connections between a single input fiber and up to N output fibers. The MEMS 1xN optical switch features a single MEMS mirror that can rotate to control the path of optical signal, allowing the MEMS optical switch to transmit, redirect and block optical signals with desired path.
This MEMS 1xN single mode optical switch can be widely employed in a variety of applications, such as optical fiber communication and fiber sensing, because of its small size, low power consumption, and exceptional durability.
- Cylindrical package, compact size
- High reliability and durability
- Fast switching speed
- Telcordia GR-1073-CORE and RoHS compliant
- Optical communication
- Fiber sensing
- Remote fiber monitoring (working with OTDR or OCM)
- Optical network routing
- Measurement resource sharing
- Optical network protection and restoration
| PARAMETER | UNIT | VALUE | |
| Wavelength | nm | 13:1290 ~ 1330 15:1525 ~ 1568 16:1600 ~ 1650 | |
| Test Wavelength | nm | 1310 / 1550 / 1625 or 1650 | |
| Insertion Loss | 1 x 2 | dB | ≤ 0.6, typical 0.5 |
| 1 x 4 / 8 | ≤ 0.8, typical 0.6 | ||
| 1 x 12 / 16 | ≤ 1.0, typical 0.9 | ||
| 1 x 24 / 32 | ≤ 1.3, typical 1.1 | ||
| 1 x 48 / 64 | ≤ 1.5, typical 1.2 | ||
| Return Loss | dB | ≥ 45 | |
| Repeatability | dB | ≤ 0.1 | |
| Crosstalk | dB | ≥ 40 | |
| PDL | dB | ≤ 0.2 | |
| WDL | dB | ≤ 0.3 | |
| TDL | 2 ≤ N ≤ 16 | dB | ≤ 0.3 |
| 16 < N ≤ 64 | ≤ 0.4 | ||
| Switch Time | 2 ≤ N ≤ 16 | ms | ≤ 5 |
| 16 < N ≤ 64 | ≤ 10 | ||
| Durability | cycle | ≥ 1 x 109 | |
| Maximum Optical Power | mW | ≤ 500 | |
| Latching Type | Non-latching | ||
