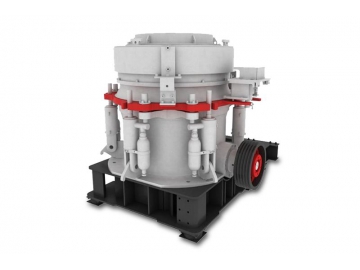

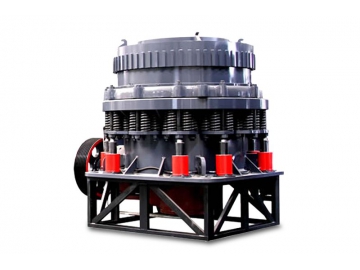

Cylinder Hydraulic Cone Crusher, YTH Series

Request a Quote

View All: http://crushing-grinding.com/1-2-7-cylinder-hydraulic-cone-crusher.html

Yate YTH series cylinder hydraulic cone crusher is well suitable for crushing various ores and rocks of hard and medium hardness or above. This hydraulic cone crusher is mainly applicable for different size of aggregate or ore milling fine crushing.

Features

Large crushing ratio and high production efficiency;
The advanced hydraulic technology realizes the overload protection, which accordingly ensures steady and safe operation;
This cylinder hydraulic cone crusher is highly automatic with hydraulic adjustment and hydraulic cavity cleaning settings, which can improve crushing efficiency to a large extent;
The cylinder hydraulic cone crusher offers multiple types of crushing cavity varying from medium, fine to extra fine products, so as to fit all your needs;
Easy maintenance, easy to operate;

Technical data

Model	Power （kW）	Cavity	Feeding dimension (mm)	CSS discharging dimension (mm)
				Capacity (t/h)
				13	19	25	31	38	41	51	64	73	76	84
YTII300	75/90	EF	45	55 60	75 100	80 90
		F	70	55-65	75-90	80-110
		M	90	60 70	80 100	95 120
		C	150	60-70	80-110	100-130	130-180
		EC	180		85 110	120 140	130 200	140 220
YTII400	180/220	EF	50	115 130	130 150	160 200
		F	70	120-135	35-165	165-225	195-230
		M	100	130-170	150-180	180-210	220-280	260-320
		C	150		180 220	220 300	250 300	280 360	350 420	400 500
		EC	240		220-300	240-320	260-330	300-420	360-430	410-530
YTHII500	280/315	EF	60		180 300	300 310	350 430	360 460
		F	100			310 350	350 420	360 440	380 480
		M	150			320 360	350 420	370 440	390 500
		C	250				365-430	375-485	400-520	430-550	500-620	560-780
		EC	330				370 410	380 500	450 550	480 580	520 660	580 800
YTHII600	355/400	EF	90	290 370	380 430	400 590
		F	125		390-470	400-620	490-690	520-760
		M	230			400 630	480 700	550 800
		C	300				495-710	550-800	600-850	650-880
		EC	370						600 850	680 900	780 900
YTHII700	450/500	EF	95	340 450	420 480	490 660
		F	130		430-500	510-640	540-750	560-820
		M	250			530-680	560-750	570-830	630-880
		C	330				560-750	570-845	650-900	690-910
		EC	400					570 850	670 950	720 1000	800 1150	930 1250	950 1310
YTHII880	560/630	EF	100	380-730	490-780	540-860
		F	150		490 500	550 840	590 900	650 1020
		M	250			560 880	620 950	670 1030	730 1280
		C	330				610-940	670-1045	750-1200	890-1310
		EC	400					675-1050	770-1250	810-1300	1050-1350	1120-1350	1200-1590
YTHII900	630/710	EF	100	400 960	490 880	600 920
		F	150		480-830	610-940	640-1250
		M	250			630 990	660 1300
		C	330				660-1310	780-1600	800-1620	890-1800	950-2150	1050-2160	1210-2550	1480-2600
		EC	400						790-1600	880-1800	930-2150	930-2150	1250-2550	1500-2600
YTH1100	800	EF	100	490 990	595 1170	700 1320
		F	150		585 1130	700 1360	790 1775	810 1850
		M	250			710 1330	800 1710	860 1830	910 1915	1130 2450
		C	370				820-1725	840-1860	930-1940	1190-2430	1270-2550	1470-2620	1590-2770
		EC	420						917 1920	1180 2420	1230 2595	1410 2630	1550 2750
YTH1300	1000	EF	100	570-1370	640-1390	810-1510
		F	150		665 1420	820 1660	890 1800	910 1950
		M	250			810 1690	900 1925	960 1950	1151 2196	1230 2650
		C	370				920-1870	990-2000	1111-2133	1290-2630	1390-2752	1690-2850	1790-3030
		EC	420						1129-2190	1280-2620	1430-2797	1710-2870	1830-3050
YTH1700	1250	EF	110	800 1710	950 1750	1200 1850
		F	160		960 1660	1200 1850	1280 2190	1520 3150
		M	360			1250-1960	1300-2580	1530-3170	1580-3300	1650-3760
		C	380				1310 2630	1650 3190	1600 3240	1720 3810	1900 4300	2010 4320	2410 5090	2960 5200
		EC	430						1590 3300	1700 3790	1950 4330	1850 4310	2450 5170	2990 5220

EC: Extra coarse

C: Coarse

M: Medium

MF: Medium fine

F: Fine

EF: Extra fine

CX: Slightly coarse
