Single Cylinder Hydraulic Cone Crusher, YGP Series Manufacturer

Single Cylinder Hydraulic Cone Crusher, YGP Series

Request a Quote

View All: http://crushing-grinding.com/1-2-2-single-cylinder-hydraulic-cone-crusher.html

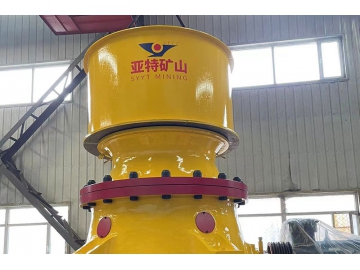

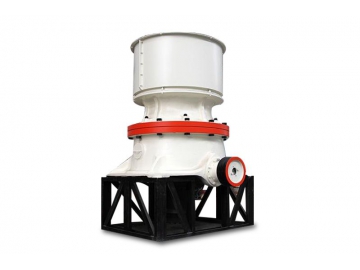

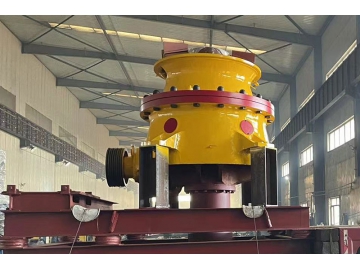

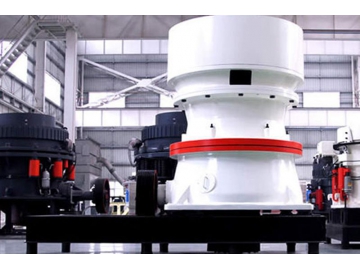

Yate YGP series single cylinder hydraulic cone crusher is equipped with outstanding combination of crushing frequency and eccentricity, so that the size of the crushed product is much uniform and refined. The single cylinder hydraulic cone crusher is mainly used for different size of aggregate or ore milling fine crushing. Furthermore, this rock crushing machine is widely applicable in the production of non-metallic mines and sand and gravel materials.

Features

Large crushing ratio and high production efficiency;
The unique laminated crushing technique enables finished product size more uniform;
With stable performances, the cavity design of this single cylinder hydraulic cone crusher reduces wears on the feed opening and minimizes the deterioration of wear parts, which ensures low consumption of wearing parts and low operating costs;
Changing the fixed cone can adjust the size of finished production;
The advanced hydraulic technology realizes the overload protection and hydraulic adjustment discharge port, which simplifies the crusher structure and reduces the weight;
Thin oil lubrication is reliable and advanced, which can increase the service life;
Easy maintenance, easy to operate;

Technical data

Model	Cavity	Dimension (mm)	Feeding size (mm)	Capacity (t/h)								Power (kW)	Weight （kg）
Model	Cavity	Dimension (mm)	Feeding size (mm)	8mm	10mm	15mm	20mm	25mm	30mm	35mm	40mm
YGP110	D	40	16	40-50	45-55	60-70	80-90	85-95				75-90	5800
	Y	100	20	50-55	50-60	70-80	95-105
	M	130	25		55-65	75-90	105-120
	C	150	25		55-65	75-90	105-120
YGP220	D	40	18	60-70	70-90	80-105	100-125	135-150	160-175	185-200		160-220	9300
	Y	70	25		90-110	110-130	130-155	160-180	185-210
	M	130	30			140-160	170-190	190-220
	C	210	40				200-220	220-240
YGP330	D	40	25	100-120	110-130	135-155	160-180	190-210	210-235	240-260		160-250	13400
	Y	100	30	110-130	120-150	165-195：	195-225	230-260	265-295	300-330
	M	150	40		150-170	205-235	245-275	290-320	325-355
	C	220	40		150-170	205-235	245-275	290-320	325-355
	D	50	25		140-160	160-180	190-210	240-260	270-290	310-330	360-370
YGP550	Y	100	30			230-250	270-290	310-330	340-370	380-410	430-450		26500
YGP550	M	150	35			260-280	300-320	340-370	380-410	430-450	450-470	200-315	26500
	C	230	40			290-310	320-340	380-410	430-460	480-510

Model	Cavity	Feeding size (mm)	Discharge size (mm)	Capacity (t/h)						Power (kW)
Model	Cavity	Feeding size (mm)	Discharge size (mm)	20mm	25mm	30mm	35mm	40mm	45mm
YGP110S	M	200	16	80-90	105-115	120-130	135-145	145-165	155-175	90	7350
	M	200	20		120-130	145-155	160-180	170-200	185-215	90	7350
	C	250	25			185-195	200-220	210-230
YGP220S	M	250	18		110-140	140-170	160-190	180-210	200-230	160	10900
	M	250	25			170-220	190-240	210-260	230-280	160	10900
	C	330	32				230-280	270-320	280-350
YGP330S	M	280	18		170-190	170-210	190-230	210-255	235-275	250	16200
	M	280	25			220-270	255-315	290-345	320-350
	C	380	32				360-400	380-420	400-440
	C	380	40					450-500	480-530
YGP550S	M	380	18	325-375	375-425	400-450	425-475	450-500	500-550		33300
	M	380	25	500-550	550-600	600-650	650-700	700-750	750-800
	C	500	32	650-700	700-750	750-800	825-875	900-950		315
	C	500	40			900-950	975-1050			315
