Multi-Cylinder Hydraulic Cone Crusher
The sizer crusher can meet the requirements of crushing systems with a maximum capacity of 10,000 tons per hour. We have achieved the research, development, and manufacturing capabilities for ten-thousand-ton-per-hour sizer crushing stations. Our sizer crushers have been successfully applied in various fields, including open-pit coal mines, underground coal mines, limestone, medium-soft metal mines, crushing of tunnel waste rocks, and laterite nickel ores.
- High throughput capacity: Suitable for handling large quantities of material with a capacity of up to 10,000 t/h.
- Versatile application: Successfully applied in various mining fields, including coal, limestone, and nickel ore processing.
- Durable and efficient: Built to handle demanding environments and ensure long-lasting performance.
| Model | Sizer diameter (mm) | Length (mm) | Max. feed size (mm) | Output size (mm) | Max. capacity (t/h) |
| | 1300 | 2000 | 1200 | ≤300 | 1200 |
| | 1300 | 2000 | 1200 | ≤300 | 1500 |
| | 1370 | 2500 | 1500 | ≤300 | 3500 |
| | 1630 | 3500 | 1800 | ≤400 | 4000 |
| | 1630 | 3800 | 1800 | ≤400 | 6000 |
| | 1630 | 4000 | 1800 | ≤400 | 7500 |
| | 1630 | 4500 | 1800 | ≤400 | 10000 |
Note1: Actual production capacity depends on the actual processing circuit and ore properties. The capacity values above are calculated based on a bulk density of 1.6t/m³ and medium hardness ores.
Note2: The above parameters are for reference only and are subject to detailed engineering.

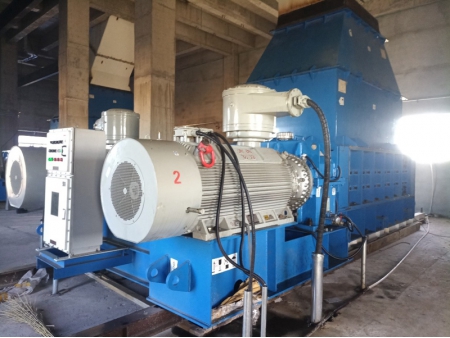

- Name of Client: TBEA Group
- Project: Tianshan Energy Project
- Location: China
- Crusher Model: 2PGCF-870
- Material: Coal
- Capacity: 50 million tons / year
- Year of Manufacture: 2021

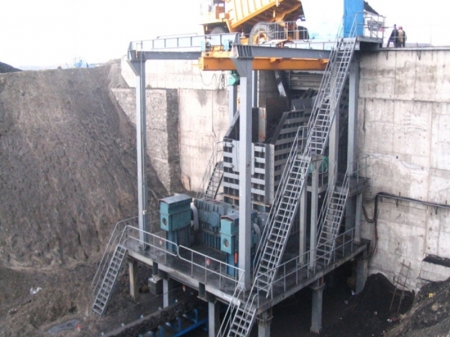

- Name of Client: Wulagai Management Zone Hongyu Industry
- Project: Hongyu Mine
- Location: China
- Crusher Model: 2PGC-1300
- Material: Coal
- Capacity: 22 million tons / year
- Year of Manufacture: 2010

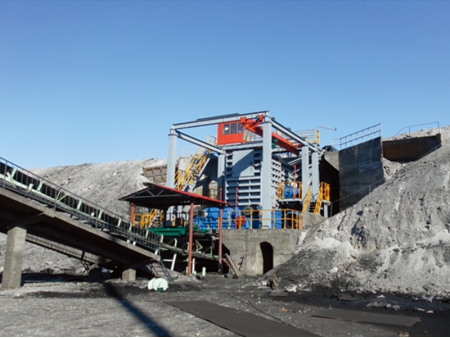

- Name of Client: Shenhua Baorixile Energy Industry
- Project: Hongyu Mine
- Location: China
- Crusher Model: 2PGC-1630
- Material: Coal
- Capacity: 10 million tons / year
- Year of Manufacture: 2006

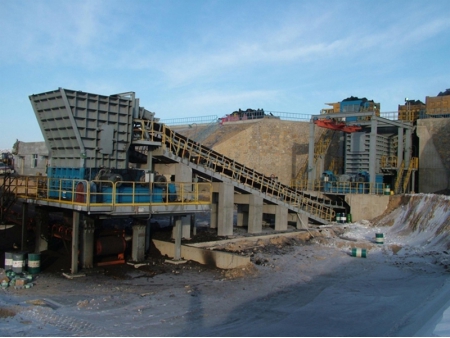

- Name of Client: Xilingol Mengdong Energy Group
- Project: Mengdong Energy
- Location: China
- Crusher Model: 2PGC-1630
- Material: Coal
- Capacity: 20 million tons / year
- Year of Manufacture: 2010
- Manufacturing

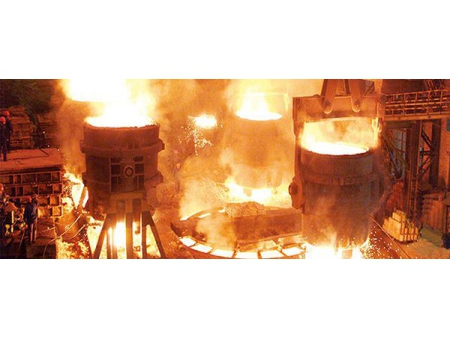

Casting and Forging Capacity
We have four production lines that have the capacity to produce large steel castings, large high-value forgings, large annular parts and large non-ferrous metal parts respectively. - Service
Lifetime service
With state-of-the-art technology and rich experience, CITIC HIC works through each critical step to individualize the optimal process and performance as per customer needs. Our lifetime service covers equipment installation, testing, maintenance, refurbishing, remote monitoring & diagnosis, upgrading & retrofitting, and performance guarantee.
