CDB2-F15 Sectional Directional Control Valve
Request a Quote

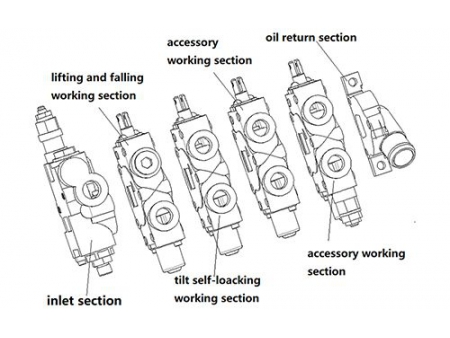

- CDB2-F15 sectional multiple directional control valve
- Nominal diameter: 15mm
- Nominal pressure: 200bar
- Max. pressure: 280bar
- Nominal flow rate: 63L/min
- Max. flow: 80L/min
Applications
The directional control valves are widely used for forklifts, excavators, agricultural machinery, small loaders, drilling equipment, logistics handling machinery, mining equipment, etc.

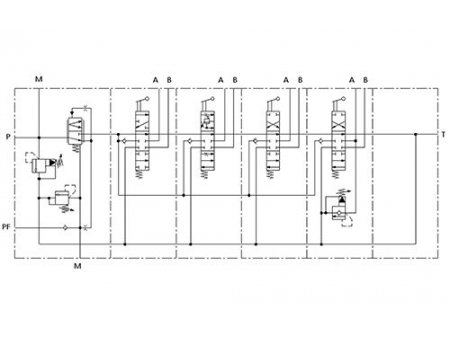

Hydraulic circuit example

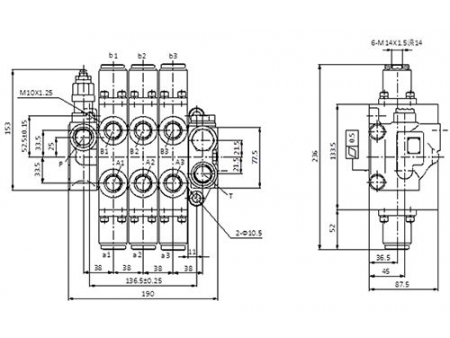

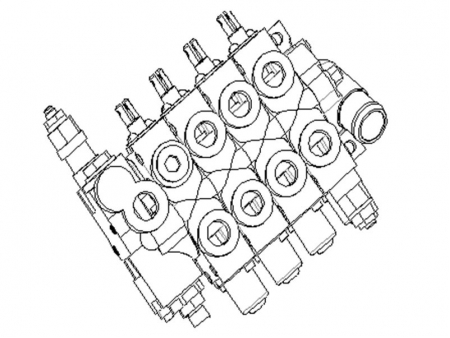

Typical hydraulic circuit and outside view: picture one

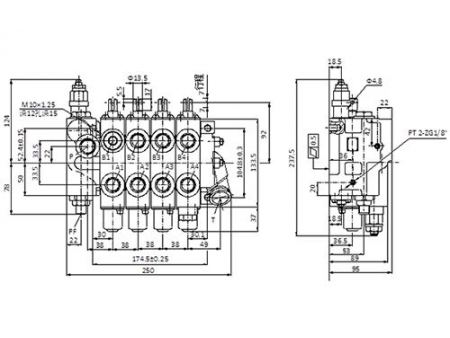

Typical hydraulic circuit and outside view: picture two
Typical hydraulic circuit and outside view: picture three
Professional supplier engaged in the R&D, manufacturing, and sales of various hydraulic components
Annual production capacity of 250,000 sets of hydraulic components
Over 30 series and over 200 varieties and specifications to meet the specific needs of our clients
