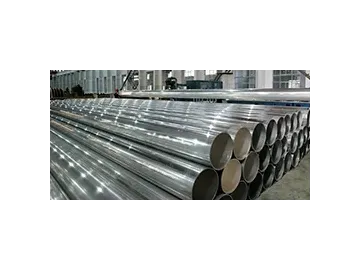

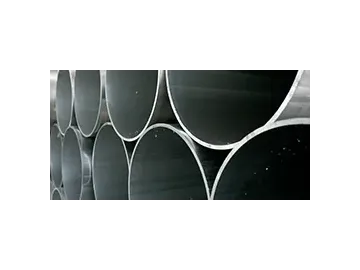

Extruded Aluminum Round Tube

Request a Quote

Website: http://aluminum-en.com/1-2-aluminum-round-tube.html

Round tubing aluminum extrusions

Zhongpeng manufactures and supplies extruded aluminum round tubes in 6005, 6060, 6061, 6063, and 6082 alloys. Products are available in standard or custom-cut lengths and can be delivered with anodized or painted finishes.

Wall thickness ranges from 1 mm to 50 mm depending on outer diameter, which is available from 10 mm to 600 mm. Alloys are supplied in tempers T4, T5, T6, and T66.

Available Sizes

Product No.	Outer Diameter (mm)	Thickness (mm)	Weight (kg/m)	Extrusion Press Capacity	Alloy & Temper
ZW_D010604	6	1	0.042	500T	6060 T66
ZW_D031289	6.35	1	0.045	500T	6063-T6
BRZ-D0002	7.54	1.5	0.077	500T	6060-T5
ZW_D060829	7.94	1.63	0.087	500T	6005-T6
ZW_D031290	7.95	1.2	0.069	500T	6063-T6
SOMA_A000014	8	1	0.059	500T	6060-T5
CHD_A000418	8	1.5	0.083	500T	6060-T66
SOMA_A000949	8	2	0.102	500T	6060-T66
ZWGYC-1820	9	1.2	0.079	500T	6063-T5
PCA_D009329	9.52	1.65	0.110	500T	6061-T6511
PCA_D006733	9.525	1.47	0.101	500T	6061-T6
PCA_D000061	9.53	1.24	0.087	500T	6061-T6
SOMA_A000015	10	1	0.076	500T	6060-T5
SOMA_A000298	10	1	0.093	500T	6060-T5
ALD_D000401	10	1.2	0.090	500T	6060-T5
SOMA_A001274	10	1.5	0.108	500T	6063-T5
SOMA_A000592	10	2	0.136	500T	6060-T66
ZWGYC-1387	10	2.6	0.163	500T	6063-T5
ZW_D060629	10	3	0.178	500T	6060T66
XSS-647	10	3.25	0.186	500T	6063-T5
SYSZ-52	10	3.75	0.199	500T	6063-T5

Material Selection Guide

Alloy	Key Properties	Typical Applications
6005 Aluminum Round Tube	High strength, corrosion resistance, reliable performance	Industrial machinery supports, transportation systems, load-bearing structures
6060 Aluminum Round Tube	Weather resistance, ease of fabrication, dimensional stability	Solar mounting systems, lightweight tubular frames, architectural applications
6061 Aluminum Round Tube	Strength, corrosion resistance, weldability	Aerospace components, automotive parts, industrial structural elements
6063 Aluminum Round Tube	Smooth surface finish, weather resistance, extrusion formability	Architectural trim, curtain walls, LED housings, heat sinks
6082 Aluminum Round Tube	Strength, corrosion resistance, suitable for load-bearing assemblies	Industrial piping, marine structures, heavy-duty frames
