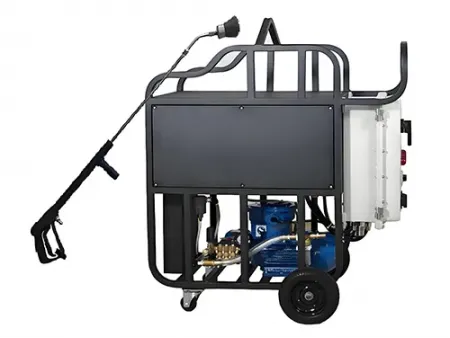

Electrically heated industrial steam cleaning machine

Built for demanding industrial environments, this explosion-proof electric steam cleaner is engineered to meet the standards of safety, reliability, and performance. It features an instant steam generator for continuous operation, an explosion-proof motor for secure use in hazardous conditions, and an original Italian AR pump known for stability and long service life.

Electric steam cleaner is equipped with a High-temperature resistant steam gun, a smart sensor, a frequency converter control, and steam hoses resistant to high temperature. An advanced control system ensures ease of operation, while the robust industrial-grade exterior design guarantees long-term durability even under intensive use. The water softener filter protects core components from scale buildup, extending the lifespan of the equipment. Together, these features ensure both operator safety and highly efficient cleaning performance, making it an ideal solution for industries where safety, efficiency, and reliability are critical.

  • Pump motor power: 0.75kW (explosion-proof motor)
  • Steam temperature: 80-210°C
  • Steam pressure: 10-20bar
Application
  • Petrochemical Industry Refinery equipment cleaning, oil/gas pipeline maintenance
  • Coal Mining Industry Underground equipment cleaning, tunnel and chamber sanitation
  • Other High-Risk Scenarios Hazardous material warehouse cleaning, fireworks manufacturing facilities

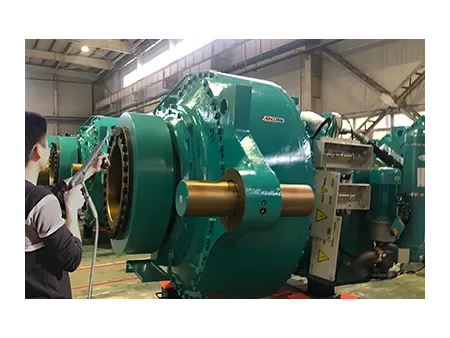

Steam cleaning of heavy industrial machinery
Steam cleaning the interior of industrial equipment
Steam cleaning of coated molds
Steam cleaning of metal sheets
Steam cleaning of large industrial containers
Steam cleaning of machine parts
Specifications

Model JNX-36 (Explosion-Proof) JNX-40 (Explosion-Proof)
Power 36kW 40kW
Steam generator type Immediate heating (explosion-proof) Immediate heating (explosion-proof)
Pump motor power 0.75kW
(explosion-proof motor, pump from Italian AR Annovi Reverberi)
4kW
(explosion-proof motor, pump from Italian AR Annovi Reverberi)
Voltage/frequency 380V 50Hz 380V 50Hz
Steam temperature 170-210°C 80-210°C
Steam flow rate 72-108l/h 80-120l/h (hot water flow rate 15/min)
Steam pressure 10-20bar 10-20bar (hot water pressure 160bar)
Water tank capacity 18-22L 18-22L
Steam hose length 10m 10m
Number of steam gun 1pc 1pc
Control system PLC PLC
Safety protection Water shortage/overheat/overvoltage protection Water shortage/overheat/overvoltage protection
Sensor Temperature sensor   pressure sensor Temperature sensor   pressure sensor
Explosion-proof class Ex d IIB T4 Ex d IIB T4
Applications Flammable and explosive environments (commonly found in industries such as petroleum, chemical, and natural gas) Flammable and explosive environments (commonly found in industries such as petroleum, chemical, and natural gas)
Dimensions 120×56×74cm 103×53×118cm
Configuration
Standard configuration
10 m stainless steel braided PTFE steam hose: 1 pc
Industrial steam gun:
1 pc
Descaling agent:
1 pack
Optional Components
High-temperature resistant steam gun
