Flanged Spring-Energized Rotary Seal

Flanged Spring-Energized Rotary Seal
Flanged Spring-Energized Rotary Seal
Flanged Spring-Energized Rotary Seal
Flanged Spring-Energized Rotary Seal
Request a Quote
U-cup style seal jacket
V-spring

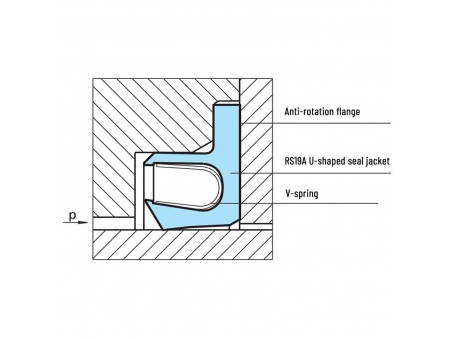

Anti-rotation flange
RS19A U-shaped seal jacket
V-Spring

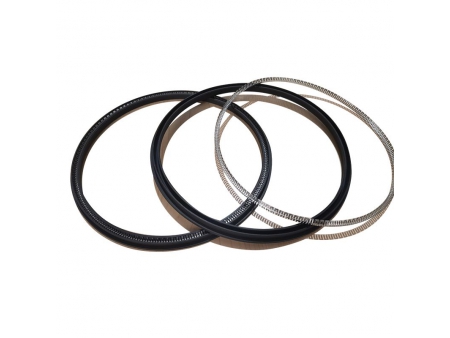

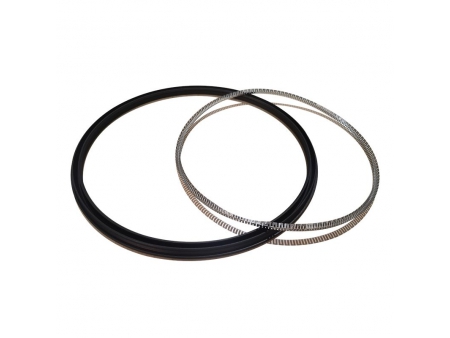

FJSEALS flanged spring-energized seal is excellent in rotary, reciprocating and static applications, when there is a need to lock the seal in the groove. As the standard seal for rotary applications, it is a single acting seal consisting of a U-shaped jacket and a V-shaped corrosion resistant spring. Flanged spring-energized seal has a flanged heel to prevent the seal from rotating in the groove as the shaft rotates and a short heavy dynamic lip that reduces friction. This allows for a long service life and good scraping ability even in media of high viscosity.

Technical parameter
Max. dynamic load 15Mpa
Max. static load 25Mpa
Reciprocating motion 10m/s
Rotary motion 2m/s
Operating temperature -100°C to 260°C
Media Virtually all fluids, chemicals and gases

Note: The pressure and speed should lower at high temperature conditions.

Benefits
  • Ideal for rotary, reciprocating and static service
  • Protects against mechanical torsion
  • Low coefficient of friction
  • Remains tight in the groove even when subject to oscillating or helical movements
  • Withstands rapid changes in temperature
  • Outstanding aging resistance
  • Excellent abrasion resistance
  • Capable of disinfection
  • Suitable for high cleanliness product
Standard materials
  • Seal jacket: Polymer FJ-0234
  • Spring: S (stainless steel)
Flanged spring-energized rotary seal series
  • Rotary seals: RS19Al

Note: Please contact us for materials customization you need.

Application
  • High pressure sealing
  • Spring energized seals for rotary actuators
  • Spring seals designed for injection molding machines
  • Rotating and pivoting arms sealing
  • Gearbox shafts sealing
Industries served
  • Industrial equipment

We provide customization options for materials, shapes, sizes, dynamic spring energized seals, static spring energized seals, and more, to meet the sealing needs of various mechanical devices.

We have adopted world-class high-precision sealing processing equipment, pure imported raw materials and strict quality management systems to rapidly produce precision sealing products of any shape, size, and material to meet customer needs.

Our spring-energized seals can be used for high-pressure sealing systems, high-temperature sealing, low-temperature sealing, and more.
