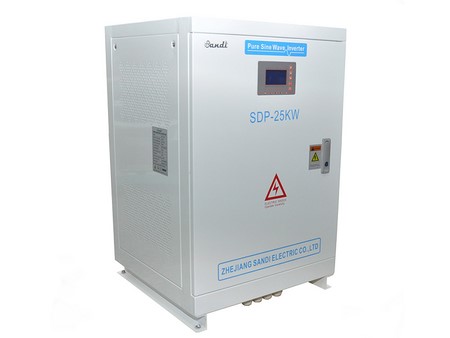

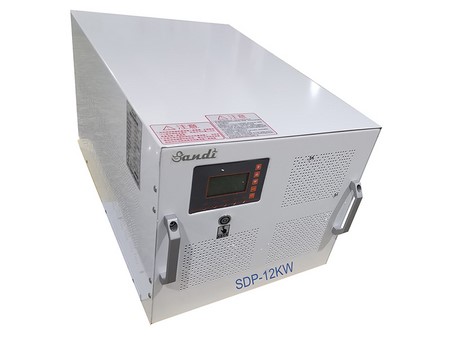

Pure sine wave inverter used in boats for converting DC into AC power

Marine inverter is an industry-specific inverter developed by our company for new energy ships to convert the DC power on board into AC power for various electrical appliances on the ship. This inverter adopts power frequency isolation design. For special requirements such as small installation space and irregular installation space of industry users, performance parameters and installation dimensions can be customized to meet various compact installation space and electrical heat dissipation requirements.

Applications

Marine inverters are widely used in various electrical appliances on ships, including ship electrical equipment, communication equipment, navigation equipment, etc.

Features

Marine inverter adopts Mitsubishi's sixth-generation IPM module, with stable performance and a designed service life of over 15 years.
Dual-mode start option allows for voltage reduction start and frequency conversion start settings through the screen.
Pure sine wave output comes with a transient response time of less than 50ms.
Isolation transformer design enables complete electrical isolation between input and output, with plastic shell circuit breakers on both input and output.
Low input ripple current is suitable for various DC power inputs.
This pure sine wave inverter has passed European CE (EMC and LVD), ISO9001, and CCS certificates.

Specifications

Model	SDP-5kW~500kW
Isolation mode	Low frequency transformer
DC Input
Rated voltage (VDC)	48V~850VDC (customizable)
AC Output
Power range	5~500kW
Voltage range	Single phase 220/230/240V or Three phase 380V/400/415/480V
Output frequency	50/60HZ±0.05
Output waveform	Pure sine wave
Waveform distortion rate (THD)	3% (linear load)
Dynamic response (0 to 100% load)	5%, ≤50ms
Power factor	0.99
Efficiency	＞93%
Overload ability	150%, 10sec
Protection
Protection functions	Input reverse polarity, under voltage, overvoltage, output overcurrent, short circuit, overheating
Display screen	LCD LED
Operation mode	Continuous operation
Cooling method	Fan cooled
Short circuit / overload protection	No automatic recovery, need to restart the inverter
Working Environment
Degree of protection	IP20
Altitude	≤3000m (derating for above 1000m)
Working temperature	-20～ 50℃
Relative humidity	0~95% non-condensing
Noise (1 meter)	≤60dB
