Date Bar Extrusion Machine Manufacturer

Date Bar Extrusion Machine

Request a Quote

View All: http://papamachine-en.com/1-2-protein-bar-extrusion-machine-60pcs-min.html

P307 Snack Bar Machine

Bar extruder for the production of protein bars

Production capacity 40-60pcs/min
Product weight 10-250g
Power 0.6kW
Voltage 220V/380V
Dimensions 1900×400×1240mm
Machine weight 180kg

Examples of Various Bar-Shaped Foods

The protein bar extrusion machine is ideal for producing a variety of bar-shaped foods, including date bars, energy bars, fruit bars, protein bars, chocolate bars, vegan bars, cereal bars, muesli bars, nutritious bars, and snack bars.
Contact us today to find the best solution for your production needs!

Protein bar
Date bar
Fruit bar
Chocolate bar
Coconut bar
Energy bar

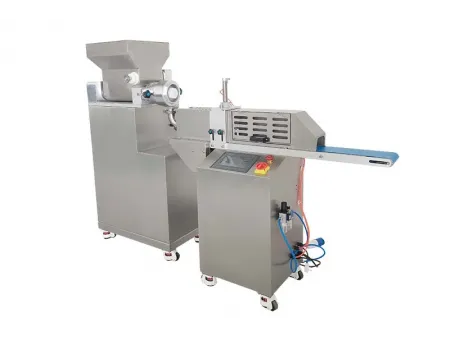

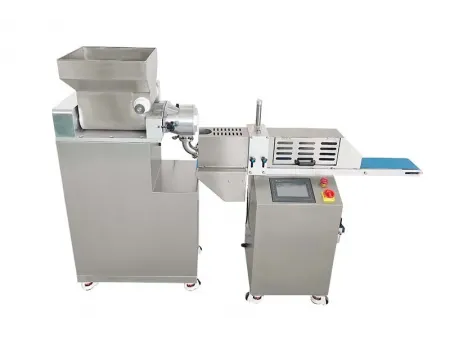

The protein bar extrusion machine is our fourth-generation model, designed with a horizontal layout to ensure smooth dough movement. It features two PE screws (optional stainless-steel screws) inside a flat feeding hopper, which drive the pre-mixed dough, ensuring uniform distribution before extruding it through a custom nozzle into bar shapes. A separate vertical cutter then slices the bars with precision.

This compact protein bar extruder is controlled by a PLC system and operated through a display panel. All settings, including speed adjustments and memory storage, are managed via a user-friendly touchscreen, making it easy for you to optimize production.

You can use it independently or integrate it with other food processing equipment. It works seamlessly with cooling tunnels for temperature-sensitive products, chocolate enrobing systems for chocolate-coated bars, packaging machines for automated bagging, ovens for additional baking, and ultrasonic cutters for high-volume icebox cookie production.

With a hopper capacity of up to 60 kg, this machine delivers more power compared to similar models on the market, helping you increase efficiency and streamline your production.

Key Components

Twin PE screws
Discharge nozzle
The machine body and hopper are made of 304 stainless steel, making them easy to disassemble and clean.
The safety cover on the conveyor belt ensures safe production.
The speed can be easily adjusted by changing the numbers on the touchscreen panel.

What sizes of bars can the protein bar machine produce?

As long as the bar width is within 150 mm, we can customize the nozzle. For larger sizes, we can modify the conveyor belt accordingly.

What power supply is required for the protein bar machine?

You only need an appropriate voltage power supply to match our protein bar machine, an air compressor to generate compressed air, and a regular water supply. No additional power sources are required.

I haven't made bars before. Can you provide a recipe?

Papa Industrial specializes in manufacturing food processing and protein bar machines, but we are not food production experts. With over a decade of experience in global protein bar machine manufacturing—particularly with our machines in India and the USA—and hundreds of tests conducted for customers, we can share some basic bar recipes. We are also happy to assist in developing a recipe tailored to your needs.

Do you have certifications for the protein bar machine?

Our protein bar machines are CE-certified. We can also provide specific certifications based on customer requirements, such as SASO certification for Saudi Arabia.

Is installation and training required for the protein bar machine?

Our engineers are available for installation if needed. Since the protein bar machine is compact, it is shipped as a complete unit, so no installation is necessary. Additionally, it features a fully automated PLC system with a touchscreen, making operation simple through on-screen controls. We provide detailed instructions and operation videos for training. Our service team is also available for online support.
