Layered Protein Bar Extrusion Machine Manufacturer

Layered Protein Bar Extrusion Machine

Request a Quote

View All: http://papamachine-en.com/1-4-layered-protein-bar-extrusion-machine.html

P170 Snack Bar Machine

Bar extruder for the formation of double/triple layered protein bars and filled bars

Production capacity 60-99pcs/min
Product weight 10-250g
Power 4.7kW
Voltage 380V/50Hz
Dimensions 6100×1180×1700mm
Machine weight 780kg

Date filled bar
Fig roll
Date bar
Fig bar
Date roll
Triple layer bar

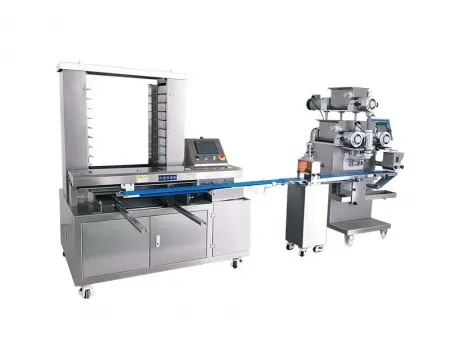

The layered protein bar extrusion machine is a versatile and customizable solution designed to meet the demands of protein bar production. It allows you to create triple-layer protein bars, double-layer filled protein bars, and various other filled products.

With this protein bar layering extruder, you can produce protein bars in different shapes and sizes, depending on your production needs. It is also compatible with various tools, including slicing knives, mooncake dough presses, tray racks, and other accessories, enhancing efficiency in the production process.

Get in touch to discover how our layered protein bar extruder can boost efficiency and elevate your production quality!

Features

Made entirely of stainless steel, designed for high-speed operation, with a maximum capacity of 99 bars per minute.
Versatile functionality for producing single-layer, double-layer, triple-layer, and filled protein bars.
Plc intelligent control system with a user-friendly touchscreen panel for fully automated operation.
Equipped with a Taiwan delta frequency converter and Taiwan liming motor for enhanced machine stability and performance.

Can this machine produce bars with more than two or three layers?

Yes, in addition to double and triple-layer bars, a fourth layer can be added by integrating an extra hopper. However, the bar’s thickness must be controlled to ensure the cutter slices through effectively.

Can your machine handle different types of fillings, including jam?

Yes, our machine is capable of producing filled bars with a variety of fillings, including jam, peanut butter, chocolate, and other soft fillings.
