Metal extrusion machine for processing copper and aluminum rods

The continuous rotary extrusion machine is designed for processing copper and aluminum rods into a variety of products, including solid, hollow, shaped, and multi-porous flat sections. This machine excels in producing items with good elongation properties, uniform dimensions, and low resistivity. It can create profiles that traditional drawing machines cannot achieve, such as fan-shaped, H-shaped, S-shaped, and L-shaped products.

Specifications
Model Inlet wire rod diameter (mm) Extrusion wheel diameter (mm) Cross section area of product (mm2) Output (kg/h) Flash amount Installed power (kVA)
HTLJ-285
Al:9.5
Cu:8
⌀285 6-400 150 ≤5% 160
HTLJ-315
Al:2*9.5\1* 15
Cu:2*8\12
⌀315 10-500 180 ≤5% 200
HTLJ-350
Al:2*9.5\1* 15
Cu:2*8\12
⌀350 25-800 360 ≤5% 250
HTLJ-400
Al:15\20
Cu:12
⌀400 50-1000 500 ≤5% 320

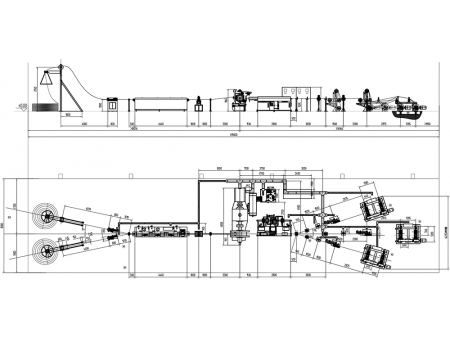

Layout
