25mm Travel Precision Translation Stages

Request a Quote

View All: http://optical-equipment.com/1-3-1-1-2-precision-crossed-roller-steel-bearing-stages.html

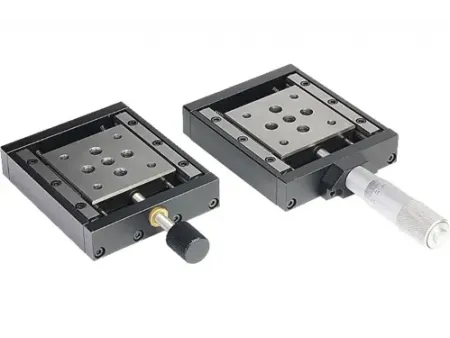

Our 25mmtravel stainless steel precision translation linear stages have 4 models, WN107TM~WN110TM to choose from. WN109TM, WN110TM are designed with side lock to enhance the stability of the table.
The linear motion is driven by the micrometer head. Adopting crossed roller bearing, higher center load capacity as well as more stable motion is allowed. The high precision small resolution micrometer head ensures the displacement to be adjusted at the nanometer level.

Features of precision motorized linear stage

Precision machined with stainless steel, the manual stage has high stiffness and load capacity.
Adopting high precision cross roller guide, the stainless steel linear stage has high precision and is durable.
With high precision base and table, the linear stage has a high accuracy of straightness, yawing, pitching and parallelism.
Use spring reset device to eliminate axial clearance.
Linear scale can be added to display micro incremental movement.
The mounting holes are distributed on the base and table with standard hole spacing, which makes the linear stage convenient to do installation and combination.
The linear stage can be combined with other series of stages to form multi-axis positioning stage.

WN107TM

WN108TM

WN109TM

WN110TM

Model	WN107TM25H	WN108TM25H	WN109TM25H	WN110TM25H
Table size	65mm×65mm	65mm×65mm	65mm×65mm	65mm×65mm
Drive	Micrometer head	Micrometer head	Micrometer head	Micrometer head
Drive position	Central drive	Lateral drive	Central drive	Lateral drive
Travel	25mm	25mm	25mm	25mm
Smallest graduation	0.01mm	0.01mm	10μ/0.5μ	10μ/0.5μ
Minimal adjustment	3μ/1.5μ	3μ/1.5μ	0.002	0.002
Guide type	Crossed roller guide	Crossed roller guide	Crossed roller guide	Crossed roller guide
Load capacity	15kg	15kg	15kg	15kg
Straightness	3μ	3μ	2μ	2μ
Yawing	25″	25″	25″	25″
Pitching	15″	15″	15″	15″
Table parallelism	15μ	15μ	15μ	15μ
Running parallelism	7μ	7μ	7μ	7μ
Weight	0.5kg	0.5kg	0.4kg	0.4kg
Material	Stainless steel	Stainless steel	Stainless steel	Stainless steel
Surface	Blackened by anodic oxidation	Blackened by anodic oxidation	Blackened by anodic oxidation	Blackened by anodic oxidation
