Heavy Duty Garbage Bag Making Machine Manufacturer

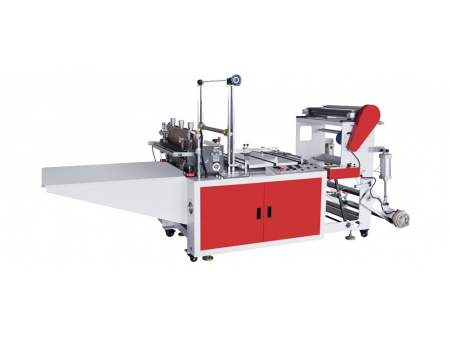

Heavy Duty Garbage Bag Making Machine

Request a Quote

View All: http://plastic-bagmachines.com/1-3-1-heavy-duty-garbage-bag-making-machine.html

Video

Bag Samples

Thick Flat Bag
Shopping Bag

Technical Parameters

Model	RQL-600A	RQL-800A	RQL-1000A	RQL-1200A
Max. width of bags (mm)	600	800	1000	1200
Max. length of bags (mm)	100-1500	100-1500	100-1500	100-1500
Bag making speed (pcs/min)	40-150	40-150	20-150	20-150
Total power (kW)	4	4.5	5	5
Max. thickness (μm)	500	500	500	500
Weight (kg)	1000	1100	1200	1400
Dimensions (m)	4.01.21.5	4.01.41.5	4.01.61.5	4.01.81.5

Features

We at TPLAST have employed Turkish high-tech design in this heavy duty garbage bag making machine. Its precise sealing line retains its shape regardless of the thickness of the film. The overall shape of the sealing line is consistent from left to right and there are no discrepancies in the width or narrowness of the line.
The sealing knife and cutting knife are close together, providing convenient distance between them.
Very thick heavy duty bags can be made by using this plastic garbage bag machine.
Capable of sealing and cutting bags with a maximum thickness of 500 microns, ideal for heavy-duty bag applications.

Application

This heavy duty garbage bag making machine is suitable for making thick flat bags, such as including household garbage bags, and commercial trash bags for hospitals, restaurants, hotels and industrial factories.

Details

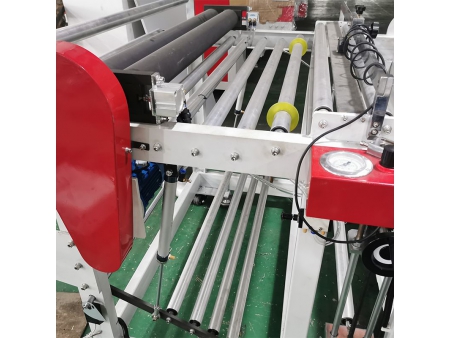

1. Unwinder
  The unwinding unit is configured with an automatic tension control
1. Unwinder Motor
  AC Type, Delta inverter control

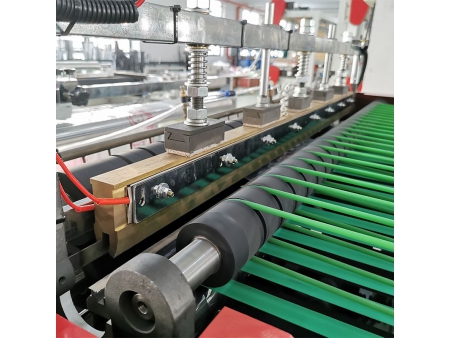

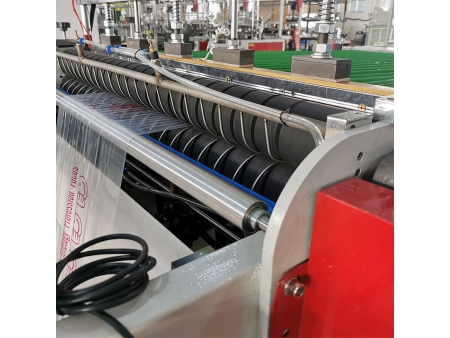

1. Sealing and Cutting Units
  A stronger alloy steel sealing bar and an electric currency cutting knife, providing precise and effective results The sealing lines remain non-deformable no matter how thick or thin the material is Capable of sealing and cutting bags up to a maximum thickness of 600μm
1. Control System
  - Taiwan Brand Main Motor
  - Delta Inverter
  - Omron Temperature Controller
  - Panasonic Photocell
  - Schneider Electric Parts
1. Photocell
  The Panasonic photocell from Japan has a maximum cutting length of 1500 mm and is adjustable

Feeding Unit PU conveyor belt provides longer service life

Optional Parts

D Puncher
Hole Puncher
Yaskawa Servo Motor
